A section detail of footing details has given in the form of 2D Autocad DWG drawing file. Download the 2D Autocad DWG drawing file.


Description

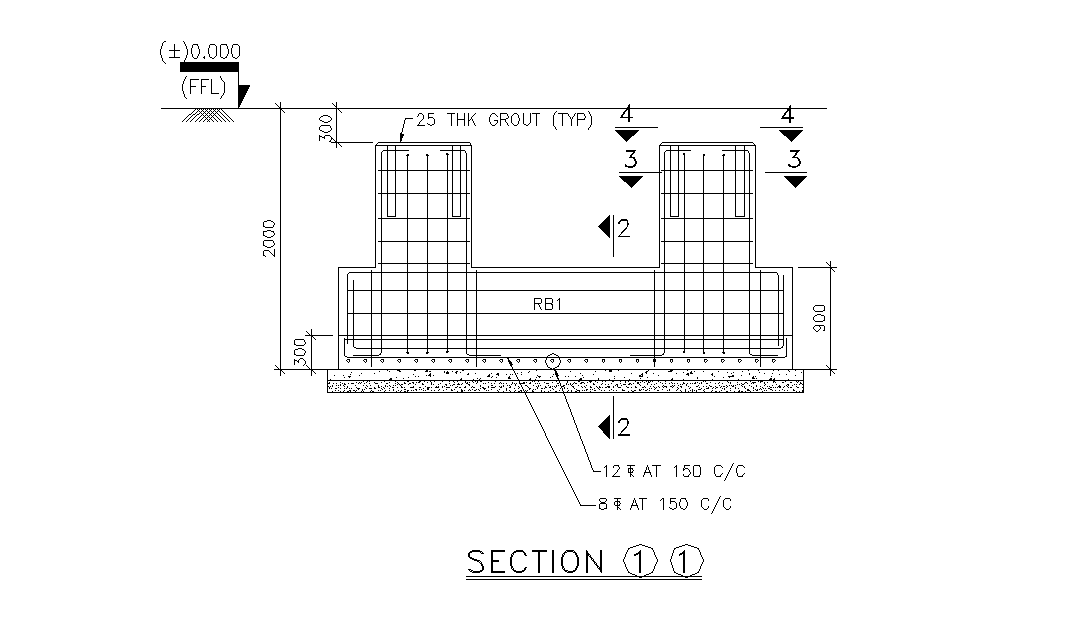

A section detail of footing details has given in the form of 2D Autocad DWG drawing file. Thickness of PCC is 100mm and grouting is 25mm. Height of footing is 2m. Reinforcement details are given in the drawing model. Thank you for downloading the 2D Autocad file and other CAD program files from our website.




File Type: DWG File ID: 169627
