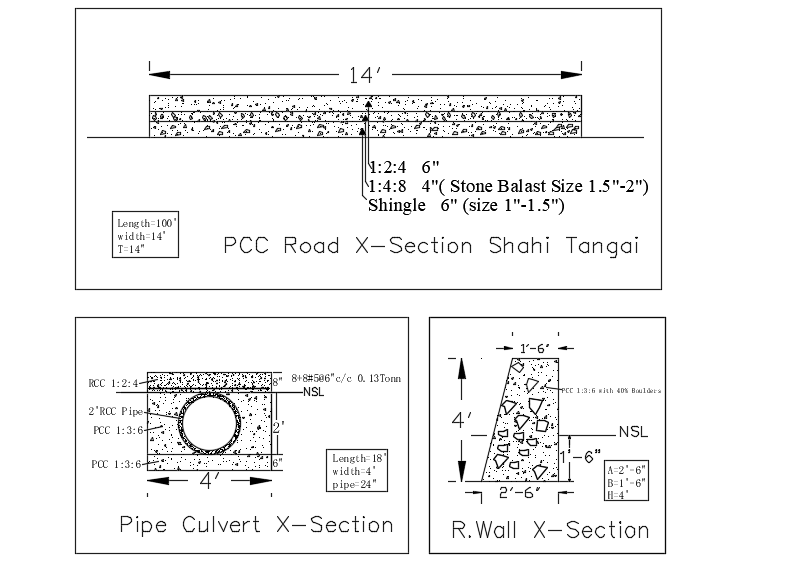

Pcc road there is constructed in Tribl Area i make this x-section for PCC Road and all dimension is available in drawing this will make in autocad 2d dwg file.
