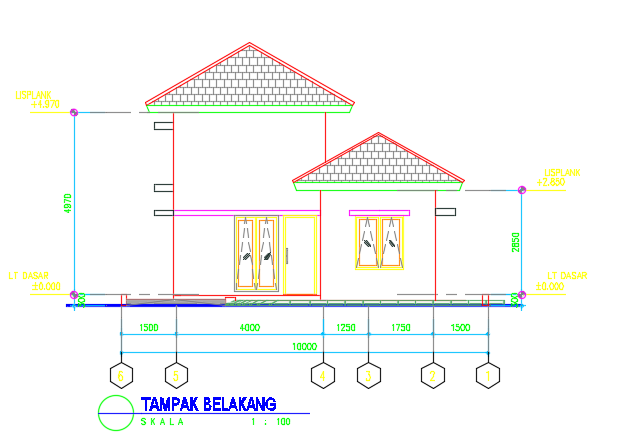

The back side elevation view of the 10x20m bungalow building


Description

The back side elevation view of the 10x20m bungalow building is given in this file. The total height of the building is 5.2m. The ground floor height is 2.85m. In this file, the ground floor and roof layouts are given. On the ground floor, the living room, kitchen, store room, glass area, pantry, dining area, master bedroom with the attached toilet, guest room, children’s room, wash basin area, common bathroom, park, garden, and car parking are available. For more details download the CAD drawing file from our website.




File Type: DWG File ID: 192399

Uploaded by:


Meera
India
