Doors and windows installation of corner house details dwg file


Description

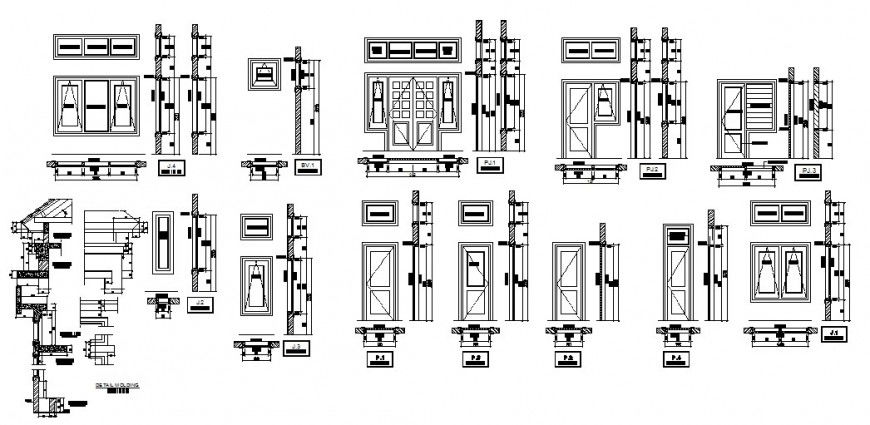

Doors and windows installation of corner house details that includes a detailed view of window and door elevation, wires and fences, galvanized mesh, clamps galv, aluminum couplings, amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications, model selection, symbology details, dimensions details, joints details and much more of window and door installation and window installation details.




File Type: DWG File ID: 110087

Uploaded by:


Eiz Luna
New-Zealand
