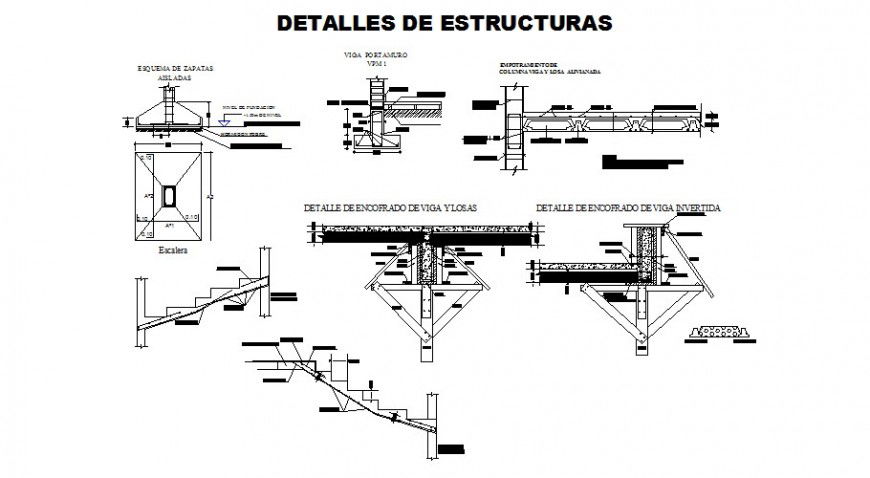

Staircase section and construction details of apartment dwg file


Description

Staircase section and construction details of apartment that includes a detailed view of foundation plan, structure details, floor construction, beam construction, floor wise structure and constructive details with memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type  and , soil  burried wall closure type  and , exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of building construction details.




File Type: DWG File ID: 110246
