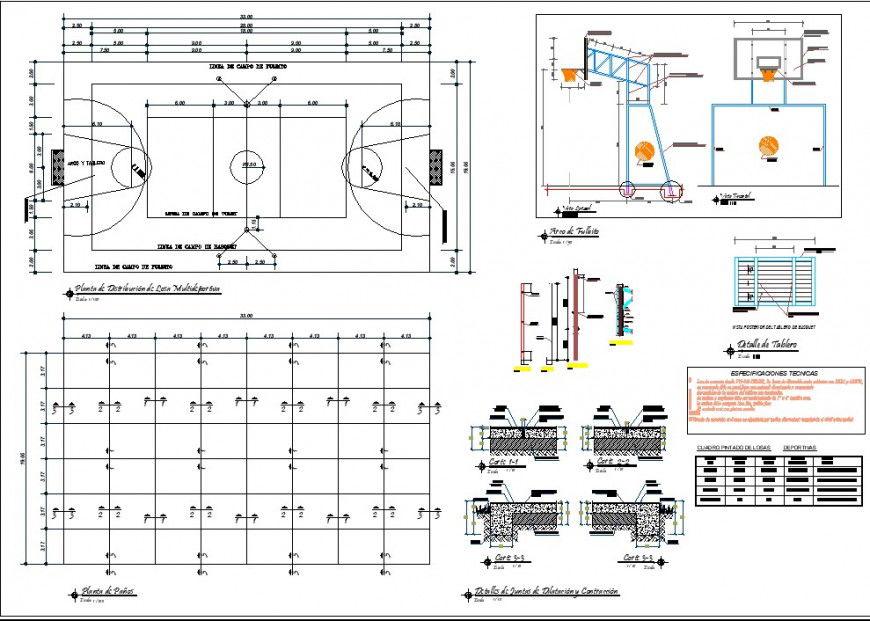

Play ground plan and flooring section plan detail dwg file, dimension detail, concrete mortar detail, hatching detail, section lien detail, colouring detail, section 1-1’ detail, section 2-2’ detail, steel framing detail, etc.
