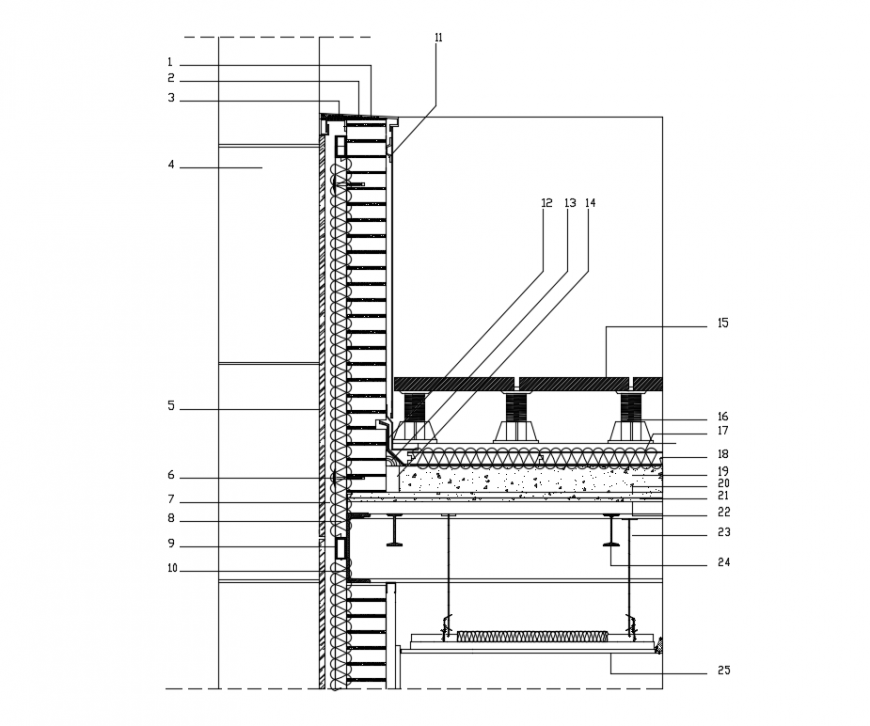

Details of roof drainage and plumbing section dwg file


Details of roof drainage and plumbing section that includes a detailed view of  Galvanized polyester reinforcement clip (70x30 mm), aluminum reinforced polyester cover sheet, aluminum angle (75x50 mm), aluminum bent for gutter edge, mm of aluminum reinforced polyester, UPN closing plate welded to it, polyester reinforced by aluminum, angular profile bent (100x50 mm), double glazing with air chamber (6x6x6 mm) and much more of curtain wall details.

File Type: DWG File ID: 132121

Uploaded by:

Eiz Luna
