This AutoCAD DWG file presents a complete heat exchanger tube bundle drawing, showing elevation views, sectional layouts, and precise measurement details essential for fabrication and engineering workflows. The assembly includes a total bundle length of 12390 mm, a tube arrangement width of 2590 mm, and various support frame dimensions clearly marked for field accuracy. Additional details such as gas flow direction, weld symbols, structural supports, flange connections, and tube sheet interfaces are accurately drafted. The top and side projections display spacing between tube rows, support plates, and bolted joints, helping engineers understand load distribution and assembly sequencing. Material specifications, weight data, and painting requirements are included on the right side of the sheet to support manufacturing standards.

The drawing also features multiple close-up views, such as Detail BL, Detail BH, Detail BJ, Detail BK, Detail BN, and Detail BG, each illustrating tube expansion zones, baffle plate geometry, and welding preparation standards. A complete design data table outlines operating parameters, allowable stresses, and compliance codes. The materials table lists carbon steel, stainless steel, and alloy components used across the assembly. These comprehensive visuals and technical references make this DWG ideal for mechanical engineers, plant designers, heat exchanger fabricators, and maintenance teams who require precise, ready-to-use CAD documentation.

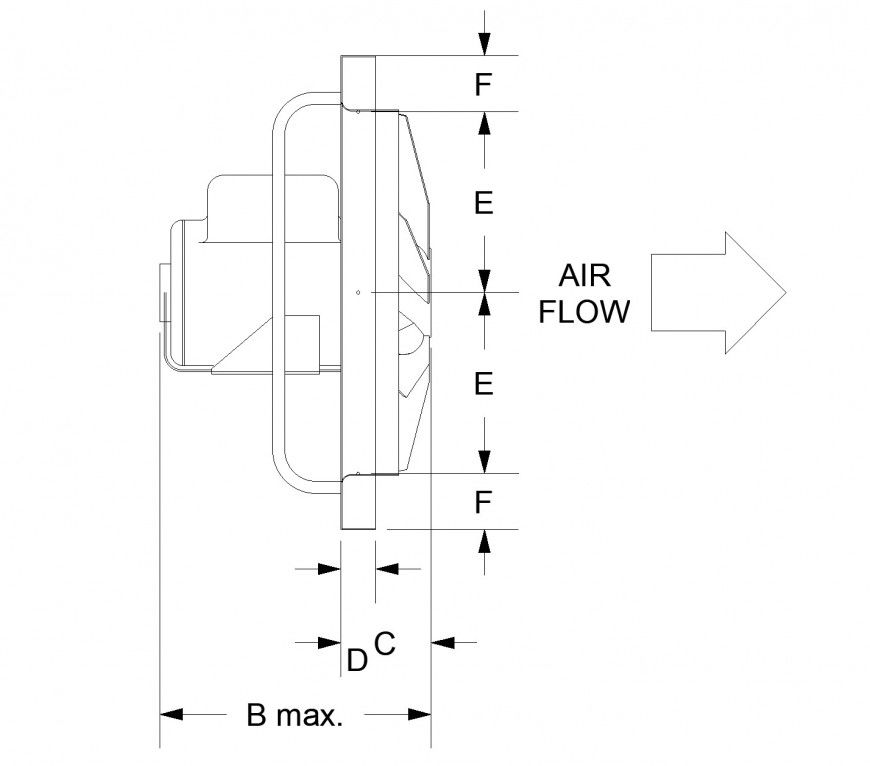

Extraction Fan plan autocad file

Eiz

Description

DWG

16 KB

Mechanical and Machinery

Mechanical Engineering

Gold

Eiz
