This detailed AutoCAD DWG file presents complete 3-track sliding door and curtain-wall construction drawings designed for a modern Beach Villa. The file includes fully dimensioned plans, door elevations, section cuts, hardware placement, aluminum profiles, drainage details, fixing systems, and glazing specifications. Fully dimensioned sliding door plan showing frame width, track spacing, structural opening, and glass panel configuration.Complete section details, including sill, head, and jamb construction with accurate measurements for installation.Aluminum profile details with thermal break, drainage slots, reinforcement channels, and fixing brackets.

Glass specifications include 10mm clear tempered glass, laminated safety glass, and track compatibility. Curtain-wall integration drawings showing how sliding systems connect with the external wall, waterproofing layer, and insulation.Detailed hardware layout including rollers, tracks, gaskets, seals, and locking mechanisms.Precise sill elevation with concrete base preparation, waterproofing membrane, and flashing details.Plan view with track spacing showing 3-panel sliding operation (left–right movement) and fixed panel position.

Elevation from exterior view clearly showing opening direction and glass arrangement with dimension references. Suitable for Beach Villa-type buildings, luxury residential projects, resorts, and high-end architectural designs. This drawing package is ideal for architects, civil engineers, interior designers, façade consultants, and construction professionals who need accurate and highly detailed sliding door CAD drawings.

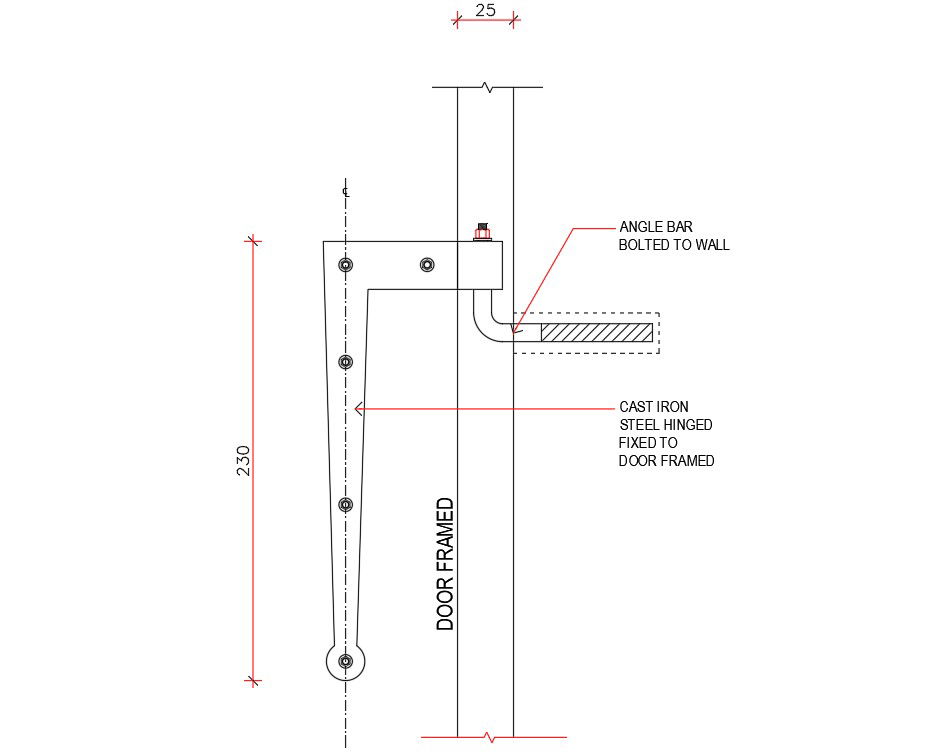

Door Frame Detail

Mehul

Description

Autocad

40 KB

Furniture

Door & Window Blocks

Gold

Mehul
