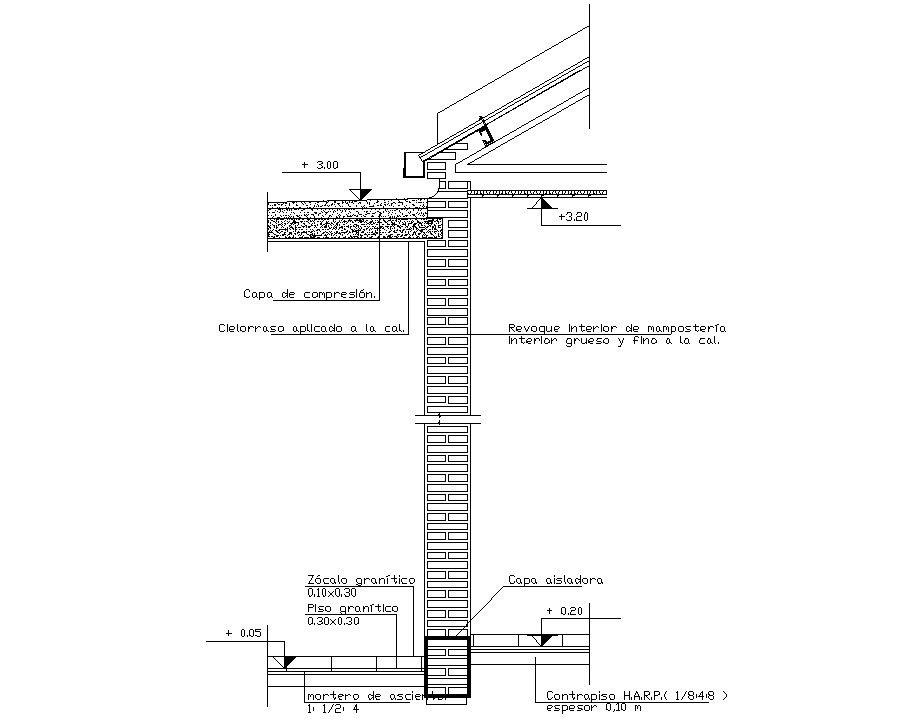

Wall structural CAD sectional drawing that shows the section drawing of wall structure with roofing structure details at ceiling. Floor leveling details and footing details also included in drawing.
