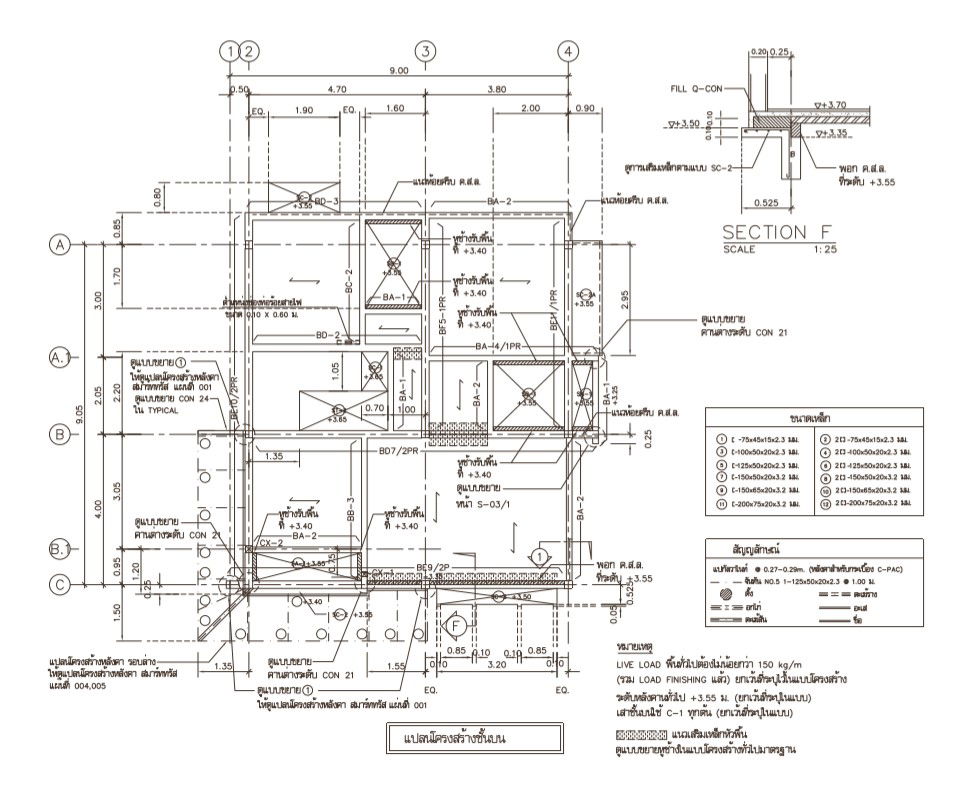

The AutoCAD drawing file shows the details of the G+1 reinforcement concrete beam section plan. Download the DWG file.
Description
The AutoCAD drawing file shows the details of the G+1 reinforcement concrete beam section plan. A detailed section plan is given in this drawing file. Reinforcement rebar details are given in this drawing file. The scale is given in the ratio of 1:25. The sectional plan is clearly mentioned with dimensions in this drawing file. Download the DWG file.
File Type:
DWG
File Size:
799 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Uploaded by:
AS
SETHUPATHI
