House Wall Section AutoCAD Drawing DWG File

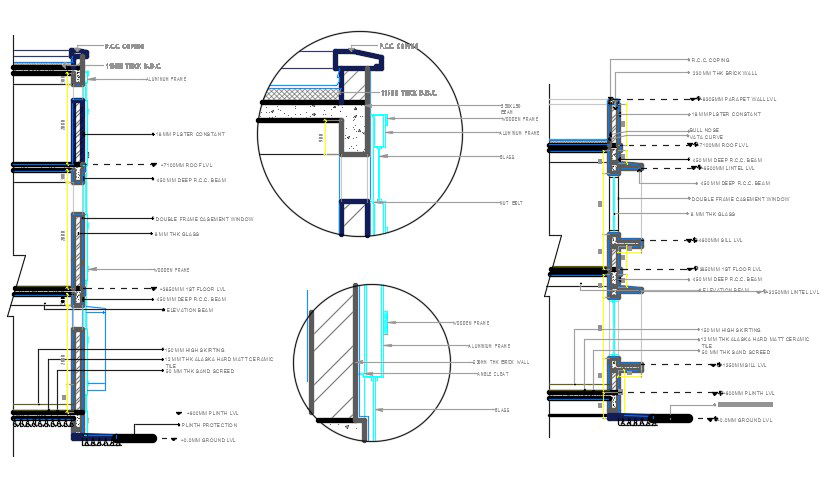

The residence house wall section drawing which consist double frame casement window 8 mm thk glass, 450 mm deep r.c.c. beam, 18 mm plster constant, 450 mm deep r.c.c. beam, brick masonry to be done in english bond with 1:4 cement mortar unless other specified, and external brick wall 230 mm thck and internal brick wall 150 mm thck otherwise mentioned. download house wall section drawing DWG file.

File Type: DWG File ID: 161967
