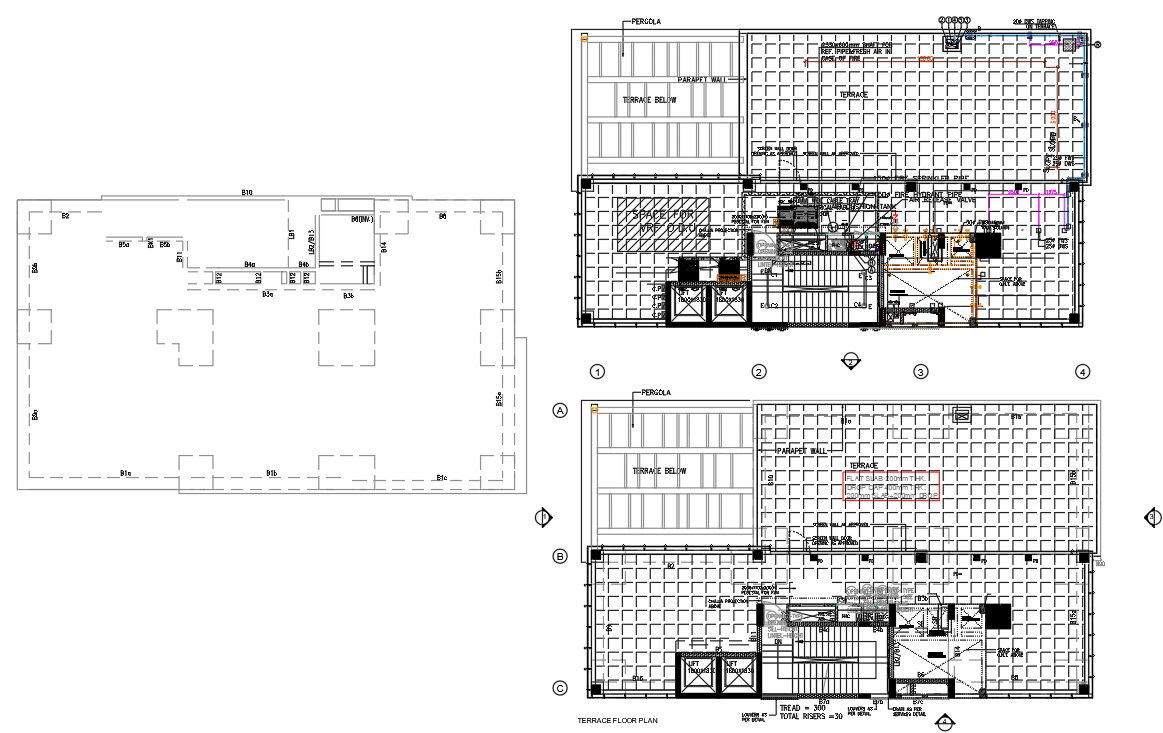

Floor plan of fire fighting terrace layout given in this file in the form of 2D Autocad DWG drawing file. Download the Autocad 2D DWG file.
Description
Floor plan of fire fighting terrace layout given in this file in the form of 2D Autocad DWG drawing file. Details of Air cushion tank is given. Release valve, Fire hydrant pipe, Isolating valve, Isolating ball valve and Mils steel channels were used in this cushion. Typical sectionof DC & earthing system. Thanks for downloading Autocad 2D drawing file and other CAD program file from our website
File Type:
DWG
File Size:
723 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
