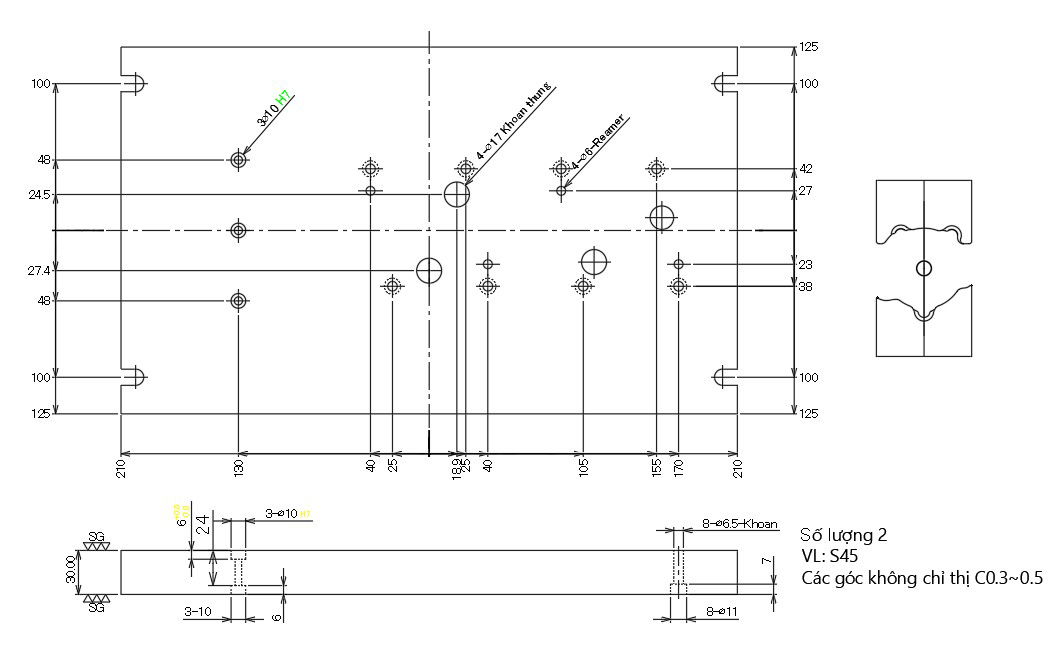

File shows the steel plate details in 2D Autocad DWG drawing file. Download the Autocad DWG drawing file.

File shows the steel plate details in 2D Autocad DWG drawing file. The zero angle The angle does not indicate C0.3 ~ 0.5. Dimensions of plates were mentioned in this drawing like length, breath and dia meter. In section drawing thickness of plates is 30mm were mentioned. Thanks for downloading the file and other CAD program from our website.
