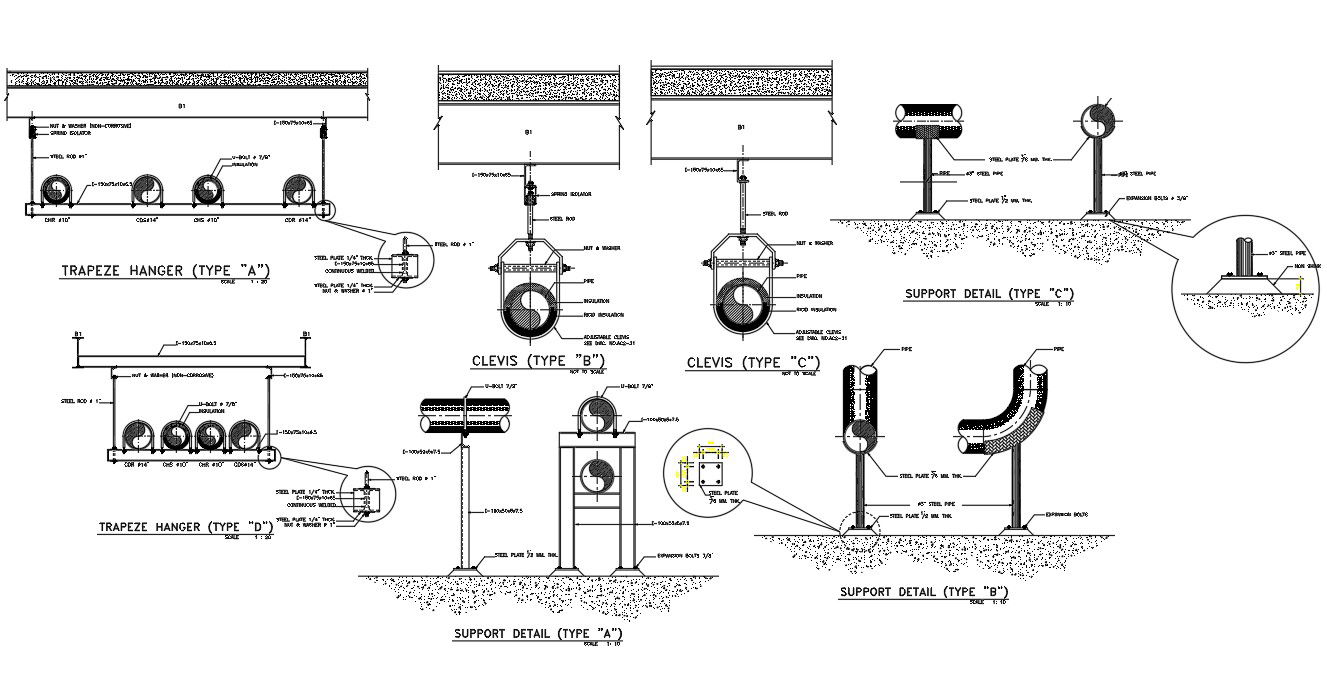

Part detail of chiller plant (Hospital building) has given in the 2D Autocad DWG drawing file. Support type details are given in this drawing file. Steel plate thickness is ½” and expansion bolt is used to connect the steel plate. Support type, trapeze hanger and clevis details are given clearly in this diagram. Download the 2D Autocad dwg drawing file. Thank you for downloading the autocad 2D DWG drawing file and other CAD program files from our website.
