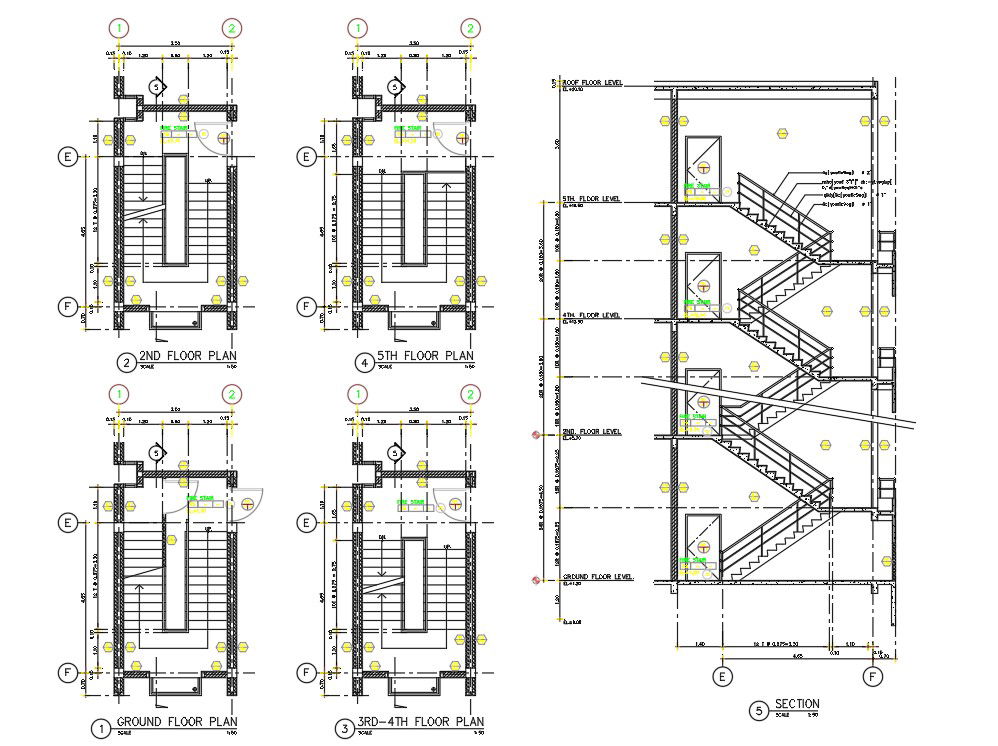

4 Storey Apartment Building Staircase Plan And Section Drawing
Description
2d CAD drawing of apartment building staircase plan and section view which consist column layout with centre line, stainless steel railing wall and the measurement of the tread and riser is mentioned clearly in this drawing. the flight of stairs all steps should have the same riser and same tread. Thank you for downloading the AutoCAD 2D DWG drawing file and other CAD program files from our cadbull website.
