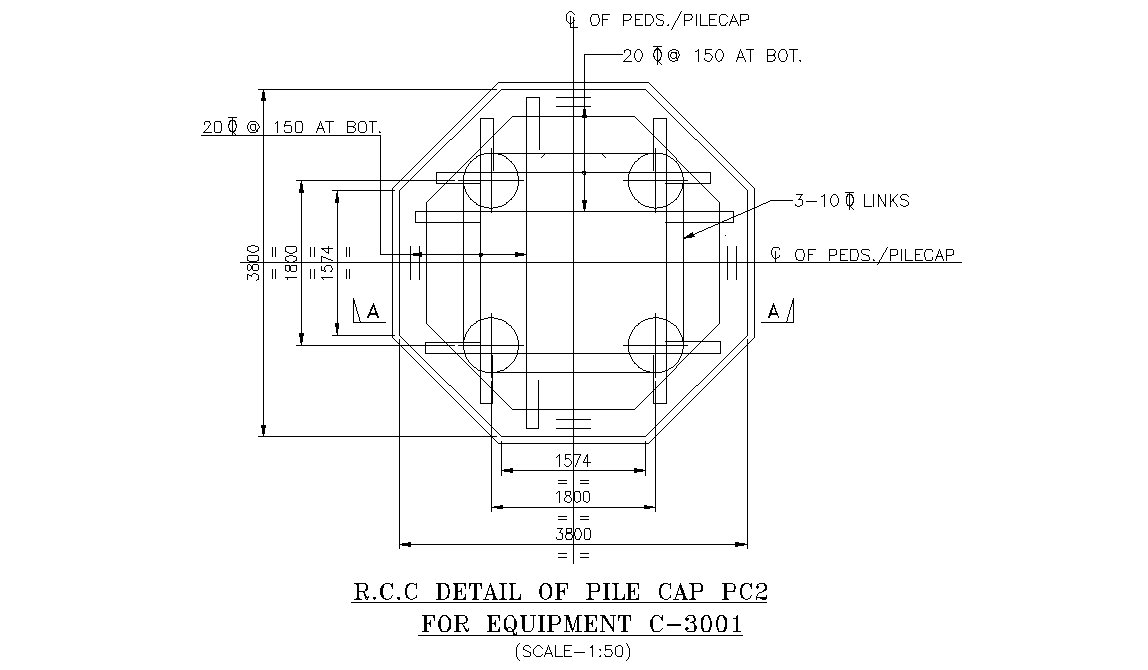

Anchor Bolt and RCC Pile Cap Details in AutoCAD Drawing
Description
Typical anchor bolt and RCC details of pile cap for equipment has given in this 2D AutoCAD DWG drawing file. Projection length and threaded length are specified. Thickness of grouting is 40mm. 4 -10 mm thickness of stiffener plate is given. Pedestal and pile caps are mentioned. Download the 2D AutoCAD DWG drawing file. Thank you for download the 2D AutoCAD DWG drawing file and other CAD program files from our website.
File Type:
3d max
File Size:
114 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Uploaded by:
