Hospital Project CAD Drawing with Detailed Master Plan Layout

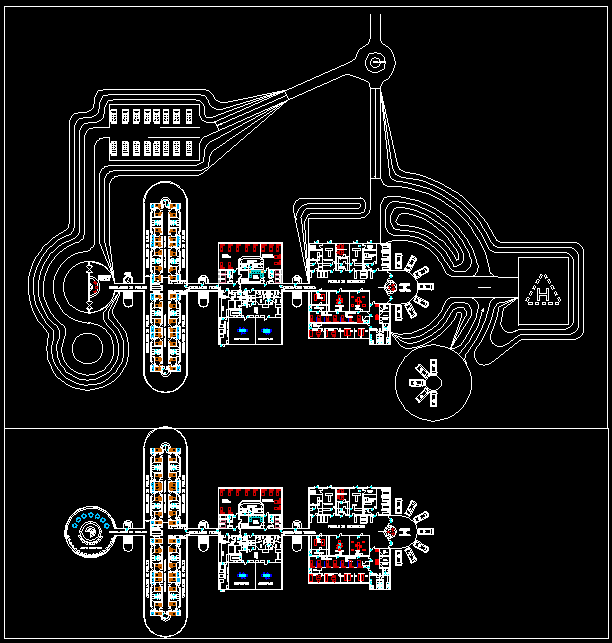

This Hospital Project CAD Drawing presents a comprehensive 2D master plan layout showcasing the functional design and zoning of a modern healthcare facility. The detailed plan includes multiple departments, patient wards, consultation rooms, laboratories, and service areas organized efficiently to support smooth hospital operations. The layout ensures optimal patient flow and accessibility for medical professionals and visitors.

The drawing also includes circulation routes, parking arrangements, and utility zones, emphasizing spatial coordination and architectural precision. The design balances healthcare functionality with architectural aesthetics, making it an excellent reference for architects, engineers, and healthcare designers. The master plan highlights essential elements like emergency access, nursing zones, and outpatient units, ensuring efficiency and comfort within the built environment.

This hospital project CAD layout is ideal for conceptual presentations, professional design studies, and planning references. It provides an excellent example of well-structured architectural design tailored for healthcare infrastructure, integrating practicality and innovation in every aspect.
