Stone wall Section DWG File

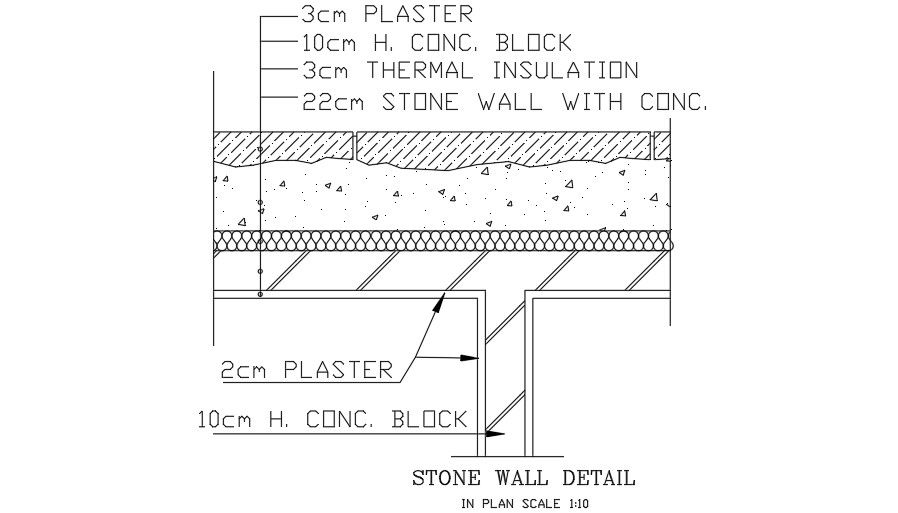

Stonewall section detail cad drawing is given in this cad file. There is a 2d side view and section details are available. Stonewalll section shows RCC detail includes 3 cm plaster, 10 cm h. concrete block, 3 cm thermal insulation, 22 cm stone wall with concrete, 2 cm plaster. For more detail visit our website Download this 2d cad file now.
