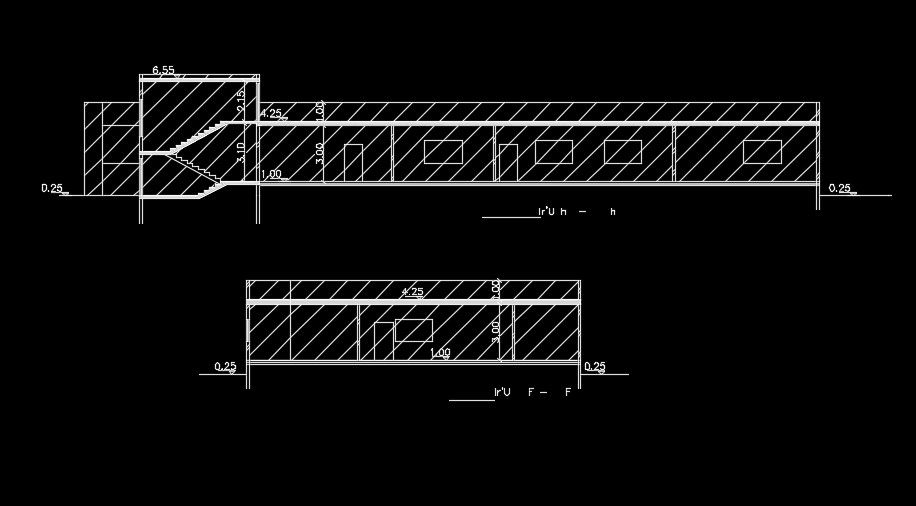

The right side section view of the 41x19m single floor house building


Description

The right side section view of the 41x19m single floor house building is given in this AutoCAD drawing model. The height of the building is 4.25m. 3 houses are available on this plan. Each house consists of the kitchen, living room, dining area, master bedroom with the attached toilet, kid’s room, guest room, and common bathroom.




File Type: DWG File ID: 186969

Uploaded by:


Meera
India
