Mechanical Machine Room AutoCAD File


Description

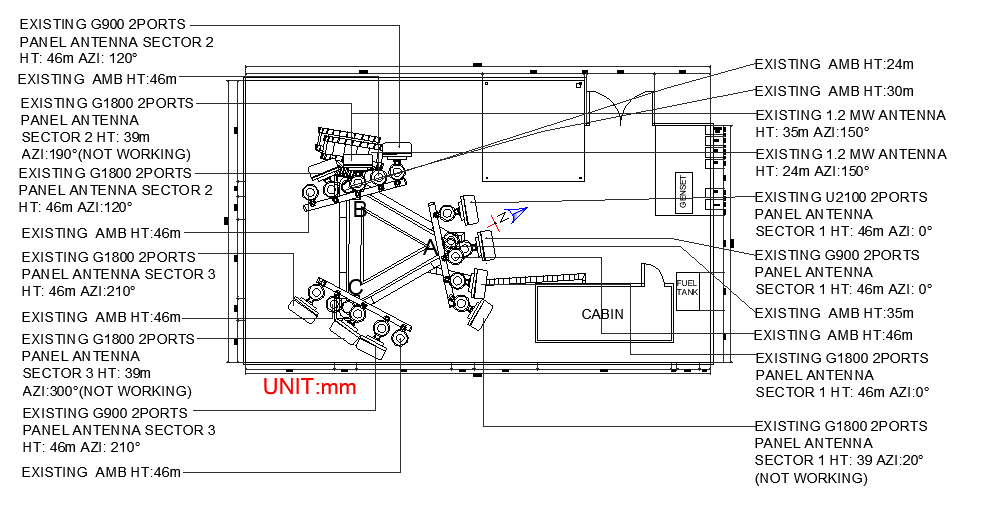

DWG Autocad drawing file shows plan and elevation detail of Mobile Mechanical Machine Room. The total area where the tower is constructed is 23.7 m x 18 m. There cabin fuel tank, gen-set & Guardhouse dimensions are clearly mentioned in the tower plan. A ladder is placed from the cabin to the tower to reach the tower. The tower is made of 3 legged stainless steel with a height of 50. All Parts of the Tower are explained in this drawing The elevation gives the diagram of the footing in the tower and the placement of the antenna in the tower. Download the AutoCAD 2D DWG file. Thanks for Downloading AutoCAD DWG and other CAD program files from our website.




File Type: DWG File ID: 189691

Uploaded by:


K.H.J Jani
india
