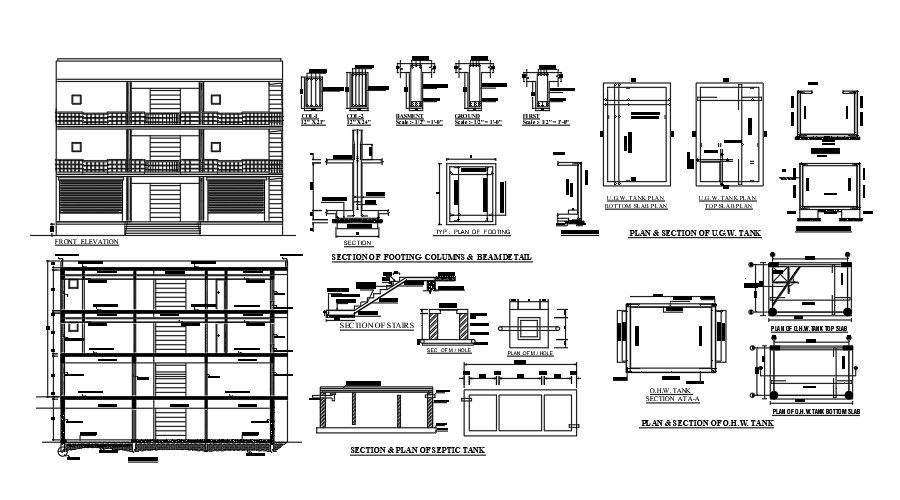

A section and elevation view of the 50’x125’ commercial shop building
Description
A section and elevation view of the 50’x125’ commercial shop building is given. This is G+ 1 commercial shop building. Footing section, underground water tank section, OHW tank section, septic tank sections, and other details are given. For more details download the AutoCAD drawing file from our cadbull website.
File Type:
DWG
File Size:
714 KB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
