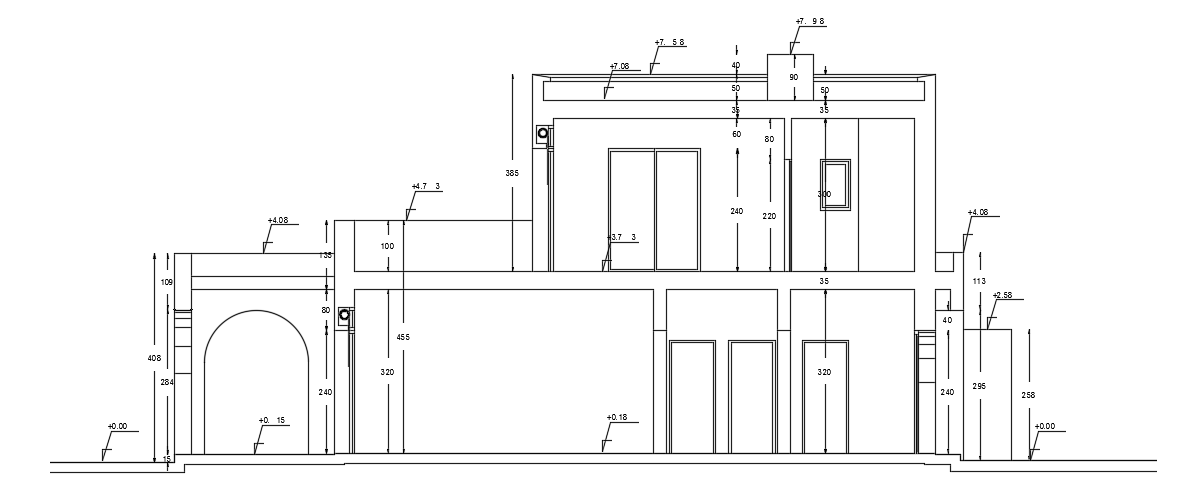

A section view of the 16x15m house building is given in this file


Description

A section view of the 16x15m house building is given in this file. This is G+ 2 house building. And also, 3bhk architecture house plan. The living room, family room, kitchen, dining area, washing machine room, master bedroom with the attached toilet, kids room with the attached toilet, and common bathrooms are available on the ground floor. On this first floor, the master bedroom with the attached toilet, and terrace are available. For more details download the AutoCAD drawing is given in this file.




File Type: DWG File ID: 193431
