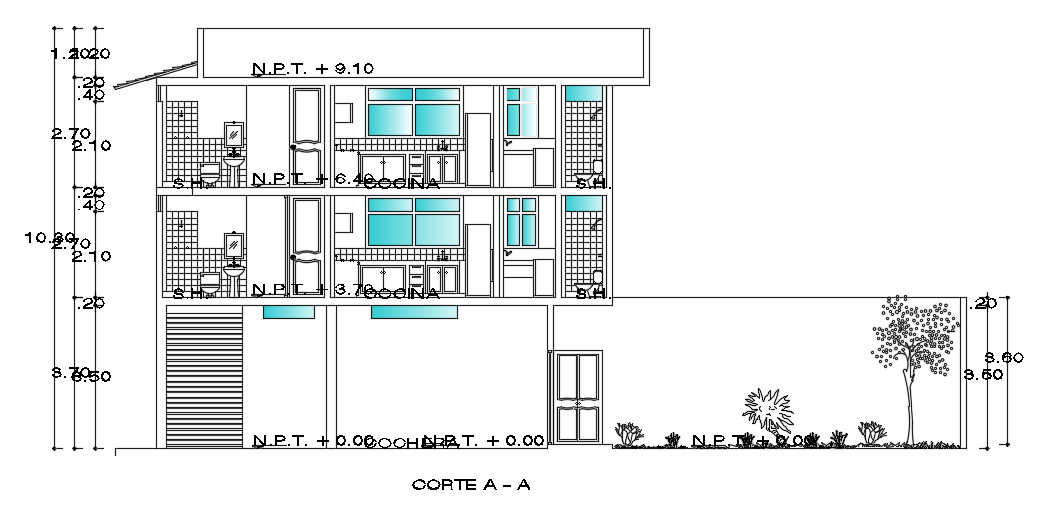

The left side section view of the 8x11m house building


Description

The left side section view of the 8x11m house building is given in this file. On this ground floor, the garage, and car parking’s are available. On this first floor, the kitchen, living room, dining area, lavaderia, master bedroom, guest room, and two common bathrooms are available. On this second floor, the kitchen, living room, dining area, lavaderia, master bedroom, guest room, and two common bathrooms are available. For more details download the AutoCAD drawing file from our cadbull website.




File Type: DWG File ID: 194006

Uploaded by:


Meera
India
