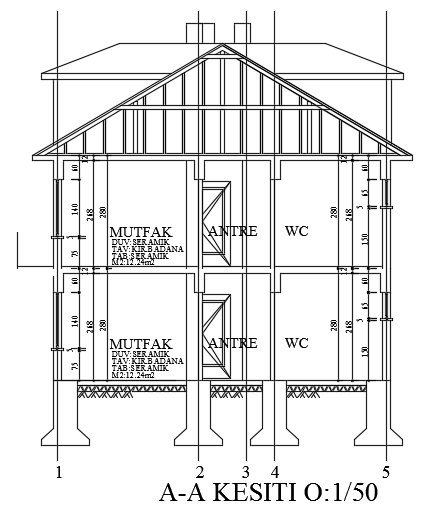

The front cut section view of the 9x15m house building


Description

The front cut section view of the 9x15m house building is given in this file. This is G+ 2 house building. On this ground floor, the living room, salon, kitchen, master bedroom, kid’s room, and common bathrooms are available. On this ground floor, the living room, salon, kitchen, master bedroom, kid’s room, and common bathrooms are available. The living room, kitchen, master bedroom, and common bathrooms are available on this second floor. For more details download the AutoCAD drawing file from our cadbull website.




File Type: DWG File ID: 194100
