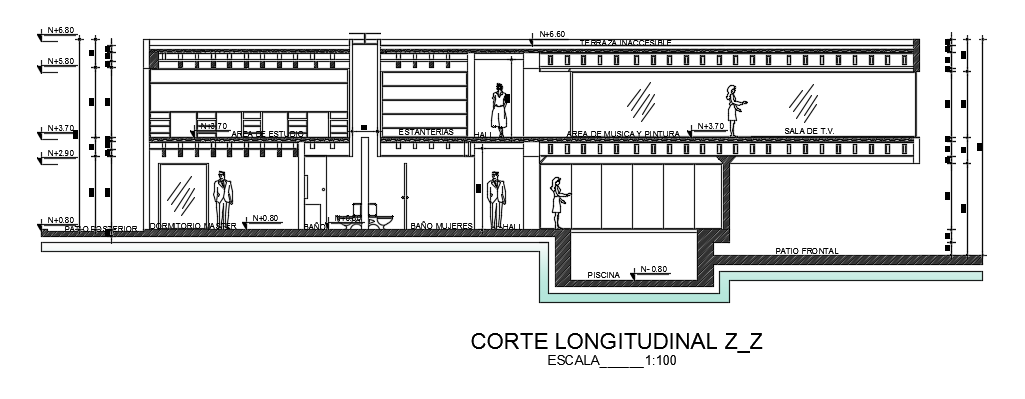

The center cut section view of the 40x18m villa building drawing


Description

The center cut section view of the 40x18m villa building drawing is given in this file. This is two story villa building. On this ground floor, the living room, TV room, rest area, hall, master bedroom with the attached toilet, ladies toilet, gent’s toilet, dining area, kitchen, maid room with the attached toilet, garage, and circulation area is available. On this first floor, the TV room, music room, lecture room, hall, family lounge area, hall circulation, 6 guest rooms with the attached toilet, and open space is available. For more details download the AutoCAD drawing file from our cadbull website.




File Type: DWG File ID: 250331

Uploaded by:


Meera
India
