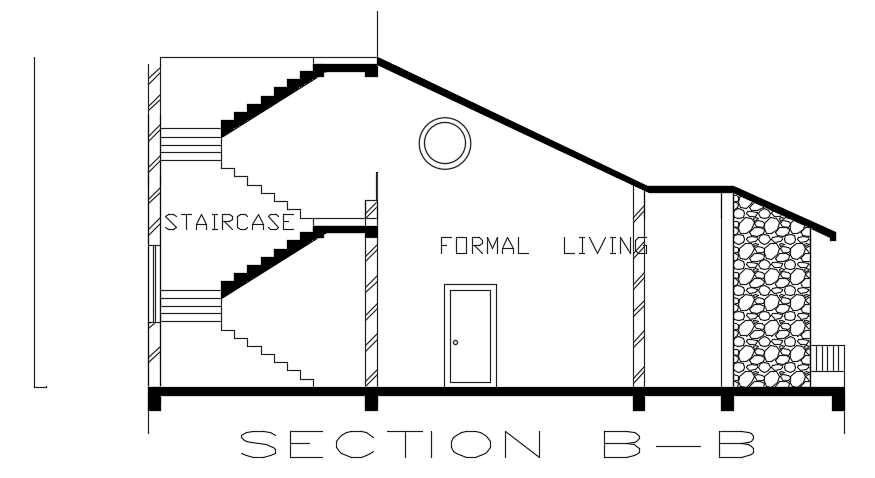

The front cut section view of the 16x18m house building


Description

The front cut section view of the 16x18m house building AutoCAD drawing is given in this file. This is two story house building. On this ground floor, kitchen, dining area, balcony, master bedroom with the attached toilet, kid’s room with the attached toilet, entrance lobby, and open terrace is available. On this first floor, the living room, master bedroom with the attached toilet, kid’s room with the attached toilet, family living room, and open terrace is available. For more details download the AutoCAD drawing model from our cadbull website.




File Type: DWG File ID: 250604

Uploaded by:


Meera
India
