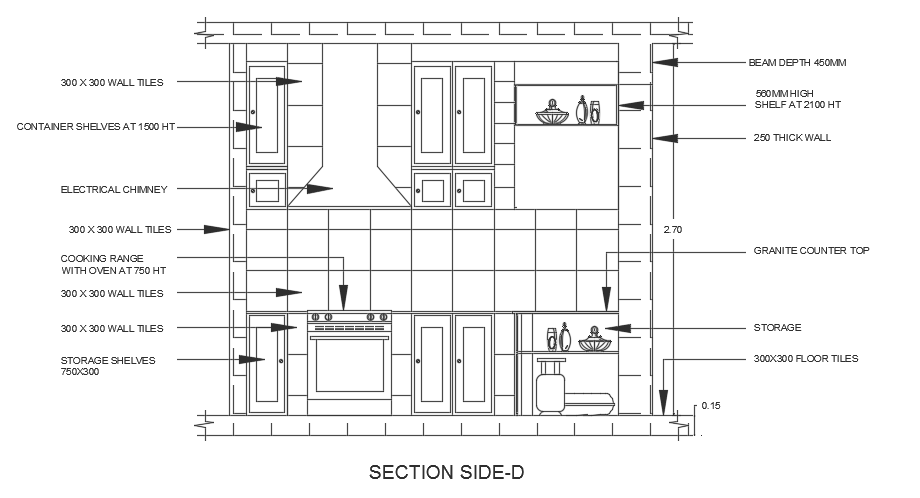

The front cut section view of the 3380x3080mm kitchen building AutoCAD 2d drawing
Description
The front cut section view of the 3380x3080mm kitchen building AutoCAD 2d drawing is given in this file. The total height of the kitchen building is 3m. On this plan, fridge location, sink, and gas stove locations are mentioned. For more details download the AutoCAD drawing model from our cadbull. Thank you for downloading the AutoCAD files from our cadbull website.
