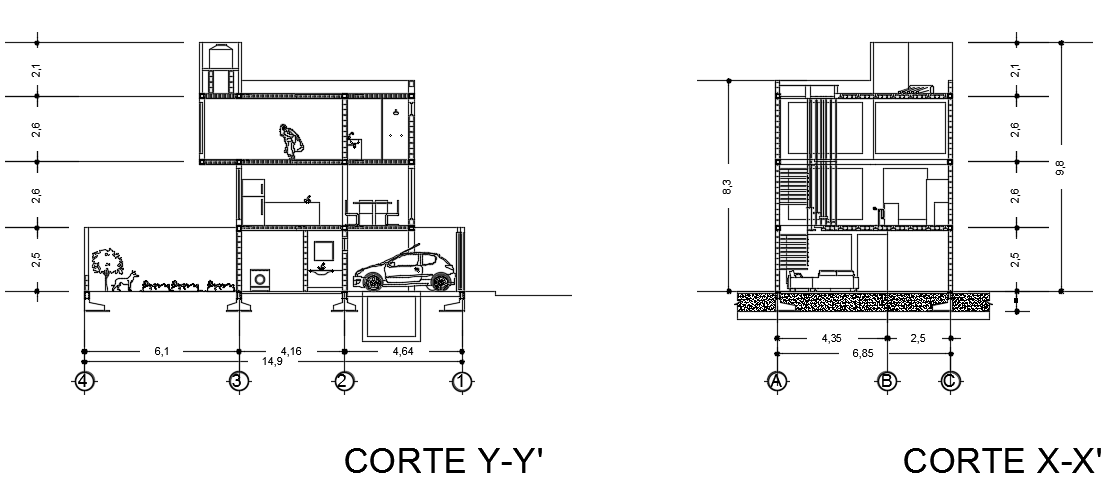

A section view of the 7x15m works administration department guest house building


Description

A section view of the 7x15m works administration department guest house building is given in this file. This is three story building. On this ground floor plan, a car parking, living room, lavanderia, and common bathroom is available. On this first floor, the living room, dining area, kitchen, and system area is given. On this second floor plan, the living room, master bedroom and attached bathroom is available. For more details download the AutoCAD model from our cadbull website. Thank you for downloading the AutoCAD files from our website.




File Type: DWG File ID: 252785

Uploaded by:


Meera
India
