Pipe insulation details

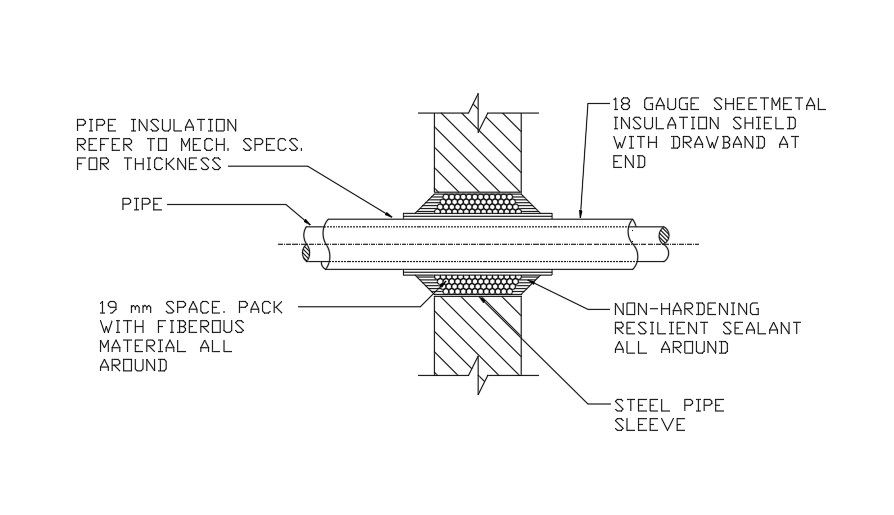

Here Pipe insulation details include steel sleeve pipe , non hardening resilient sealant all around , 18 gauge sheet metal insulation sheild with draw band at end , pipe ,pipe insulation to mech specs for thickness 19mm space pack with fabrication all around o encase piping mechanisms that cause noises or vibrations, forming a sound and vibration barrier between the piping and external areas. For more details of Pipe insulation details download this file .

File Type: DWG File ID: 253093
