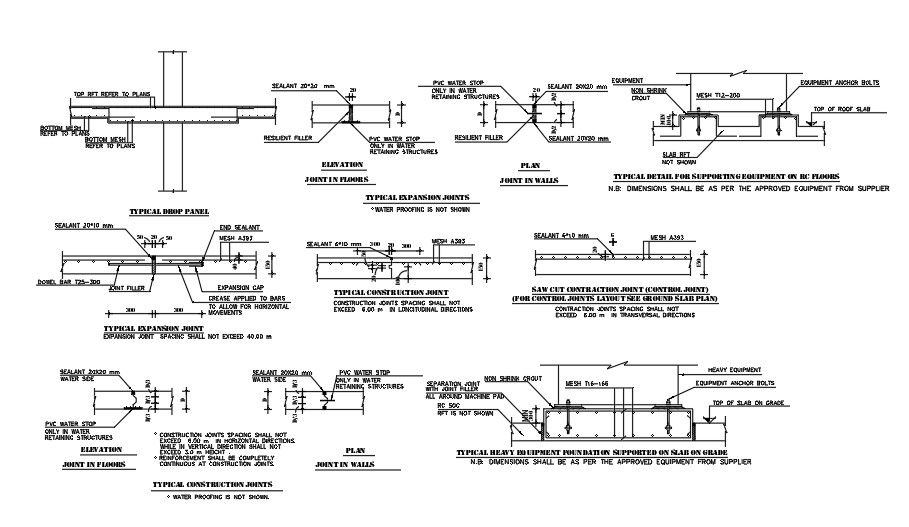

Standard details of structure.


Description

This Architectural Drawing is Standard details of structure. Detailed structural design involves the investigation of the stability, strength and rigidity of the structure to be built, based upon the physical requirements of the building and an understanding of the structural performance the materials and geometries used. The aim of structural standards is to provide for reliable structures. Specification and standards committees combine the results of research, structural analyses, and engineering judgment in establishing structural standards. Structural detailing consists of transforming the work of a structural engineer into working drawings for the use of the builder. It sounds quite simple. That it is not is evidenced by the many 'bog-ups' and even failures, that are constructed. Structure is a constructed building or a specific arrangement of things or people, especially things that have multiple parts. An example of structure is a newly built home. An example of structure is the arrangement of DNA elements. The arrangement or formation of the tissues, organs, or other parts of an organism. For more details an information download the drawing file.




File Type: DWG File ID: 253443
