Pipes and its fixtures.

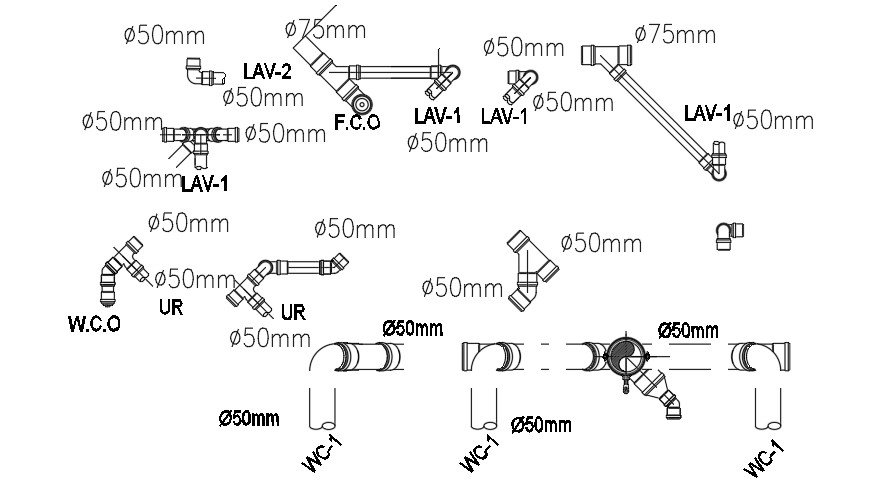

This Architectural Drawing is of Pipes and its fixtures. Plumbing fittings & fixtures are the means for safely using water in the home. These are the valves, faucets, toilets, shower heads, drain stoppers and basins of your plumbing system. Over time, fittings & fixtures can wear out so they are usually made to be replaceable. Plumbing fittings, also referred to as adaptors are what connect your plumbing fixtures in house like the drains and pipes. Plumbing fixtures are important components of the plumbing system in your home, and for the most part, taken for granted. When two ends of pipes are joined, the pipe fitting used is called union. A union is made of three parts namely a nut, a male end and a female end. The male and female ends are assembled with the support of the nuts, and necessary pressure is made to connect the joint. For more details and information download the drawing file.

File Type: DWG File ID: 253512

Uploaded by:

Presenting the broken author avatar :D Eiz Luna
