A roof layout of the 15x16m residential layout cad drawing
Description

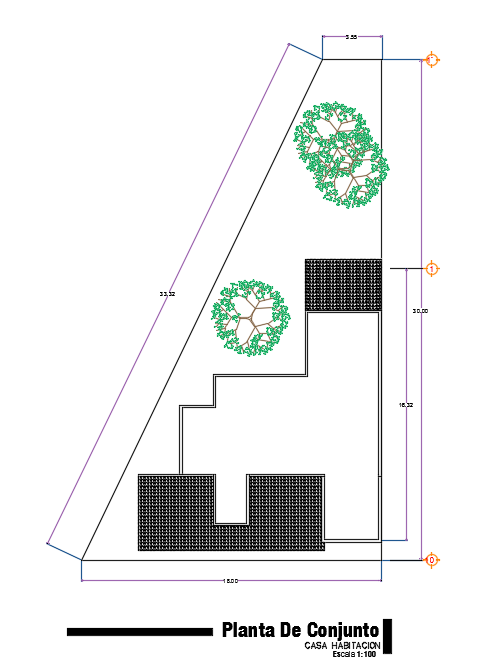

A roof layout of the 15x16m residential layout cad drawing is given in this model. This is a v shape site layout. The front breadth of the site is 18m. The back side breadth of the site is 3.55m. The left side length of the site is 30m. The right side diagonal length is 33.32m.
