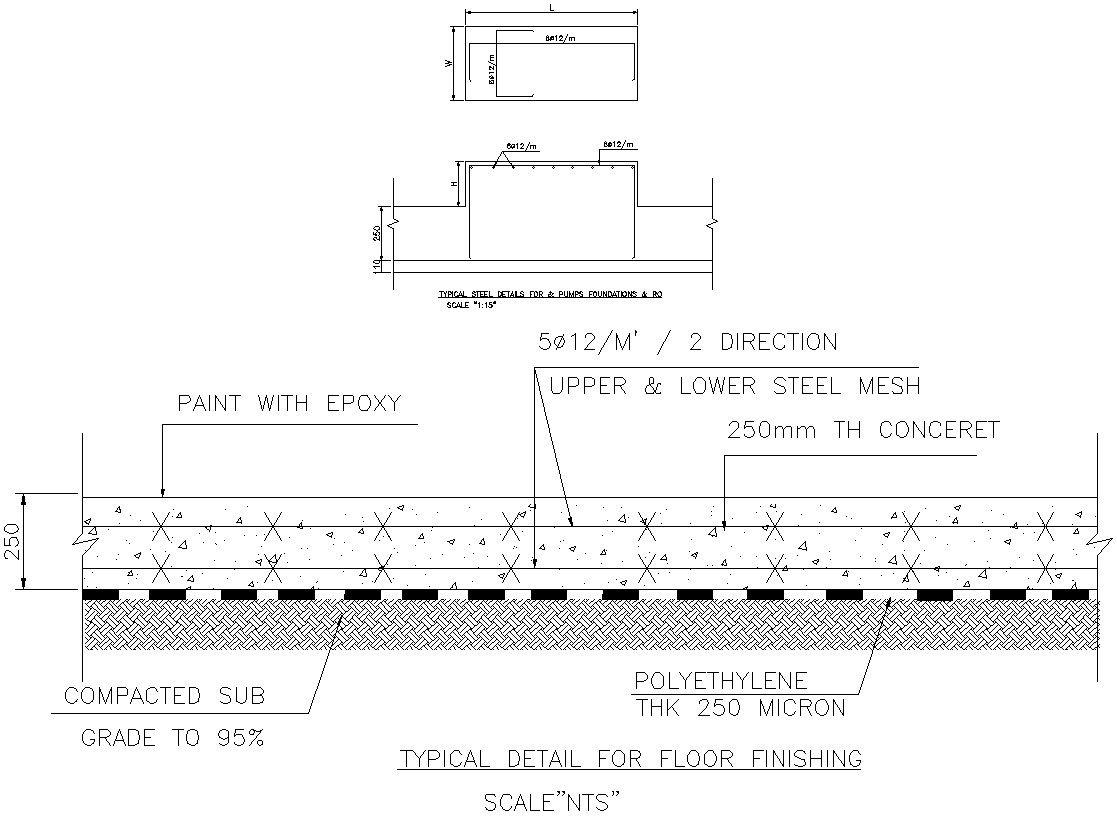

Typical details of pump foundation and floor finish.


This Architectural Drawing is AutoCAD 2d drawing of Typical details of pump foundation and floor finish. In general, a pump should be mounted on a strong baseplate supported by a strong concrete foundation. It is also necessary to properly connect the pump to the system by accurately aligning it to the piping system, as well as the driving motor. Floor finishes in commercial and institutional uses make considerable use of synthetic-fibre carpeting and vinyl composition tile. In areas of higher traffic harder surfaces may be used—for example, cut stone tiles of marble or granite, ceramic tile applied with epoxy adhesive to the substrate, or terrazzo. For more details and information download the drawing file.

File Type: DWG File ID: 255382
