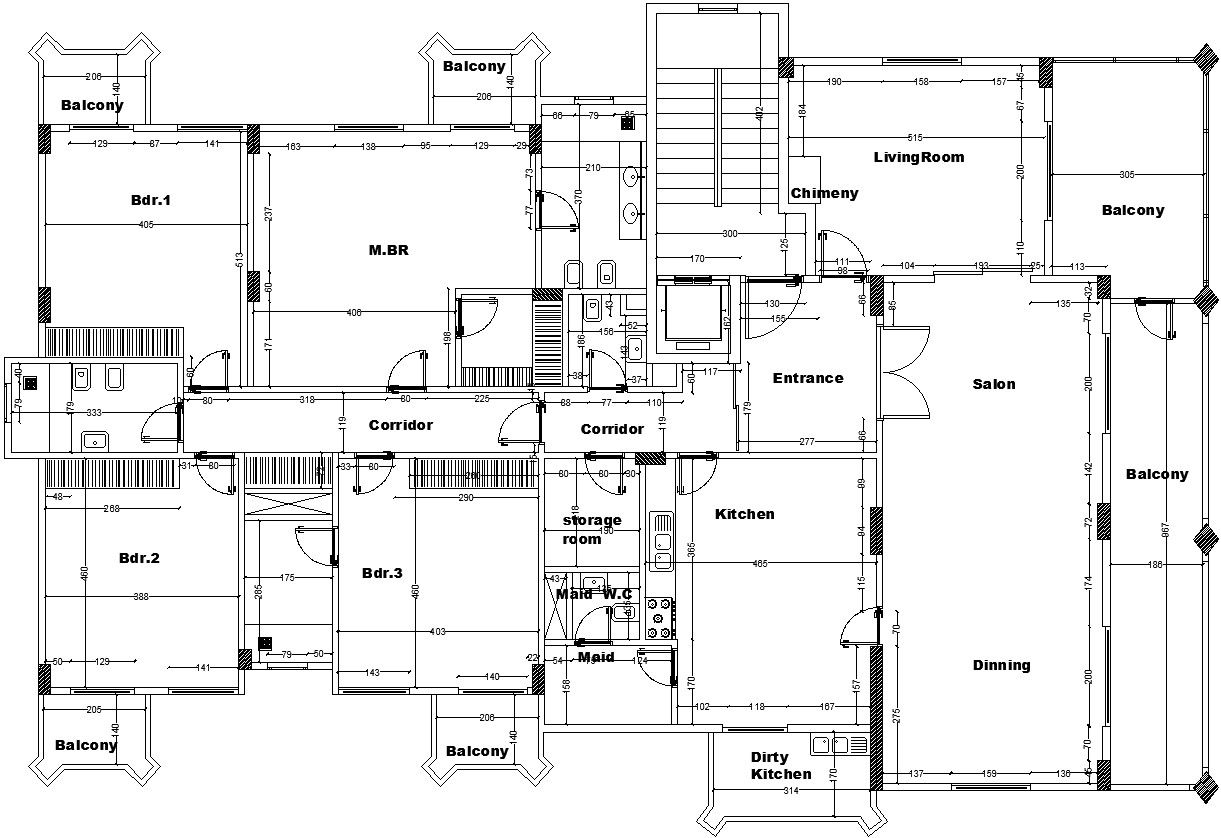

This Architectural Drawing is AutoCAD 2d drawing of Apartment layout with detail dimensioning in AutoCAD, Dwg file. Finding external walls, wall jogs, interior walls, windows, doors, and other items on a floor plan typically requires two or three continuous dimension lines. A building's exterior walls are dimensioned separately from the floor layout. The overall building dimension is shown by the outermost dimension line. For more details and information do0wnload the drawing file.
