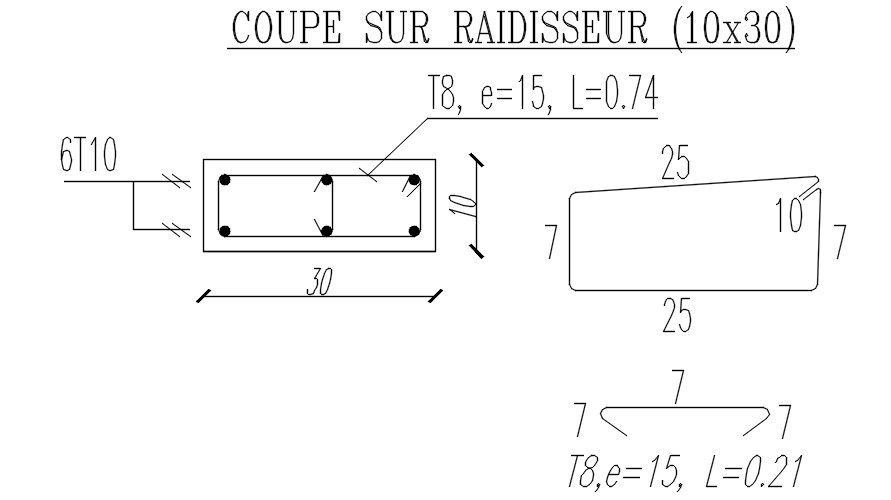

Reinforcement bar cross section view and detailed dimensional design 2d Autocad design DWG fil.
Description
This is a portion of the structural member reinforcement bar cross-section view. Here we mention their dimensions T8,e=15, L=0.74.6T,30,10 dimension L&B. Angular bar dimension7,7,7. For more detailed information check cadbull.com pages and Download the Autocad DWG file.
File Type:
DWG
File Size:
3.5 MB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Uploaded by:
K.H.J
Jani
