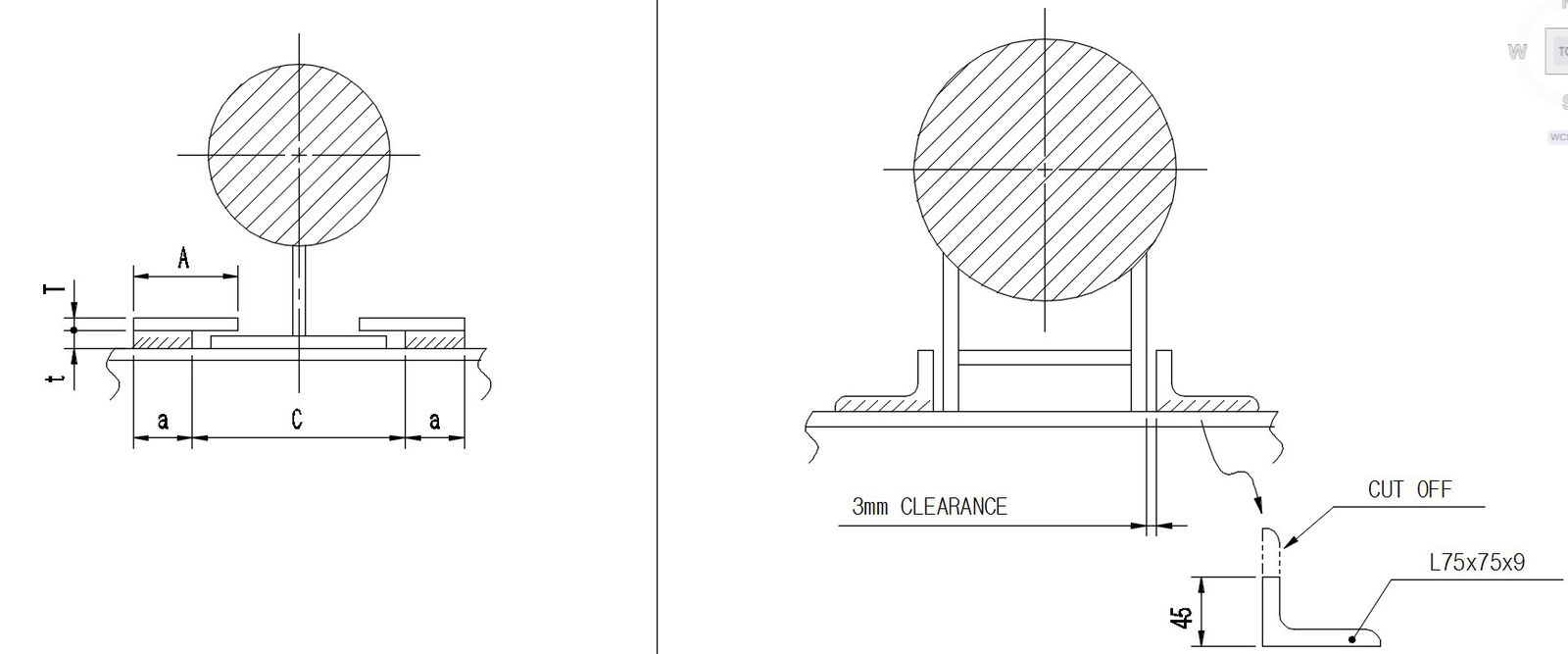

Section plan of the pipe fitting design in AutoCAD 2D drawing, CAD file, dwg file

Section plan of the pipe fitting design in AutoCAD 2D drawing. There were 75x75x9mm sized angle section is designed. 3mm clearance, a, A, and C are also specified in this design. For more knowledge and detailed information download the AutoCAD 2D dwg file.
