Pile Cap Detail Section Design in AutoCAD 2D Drawing

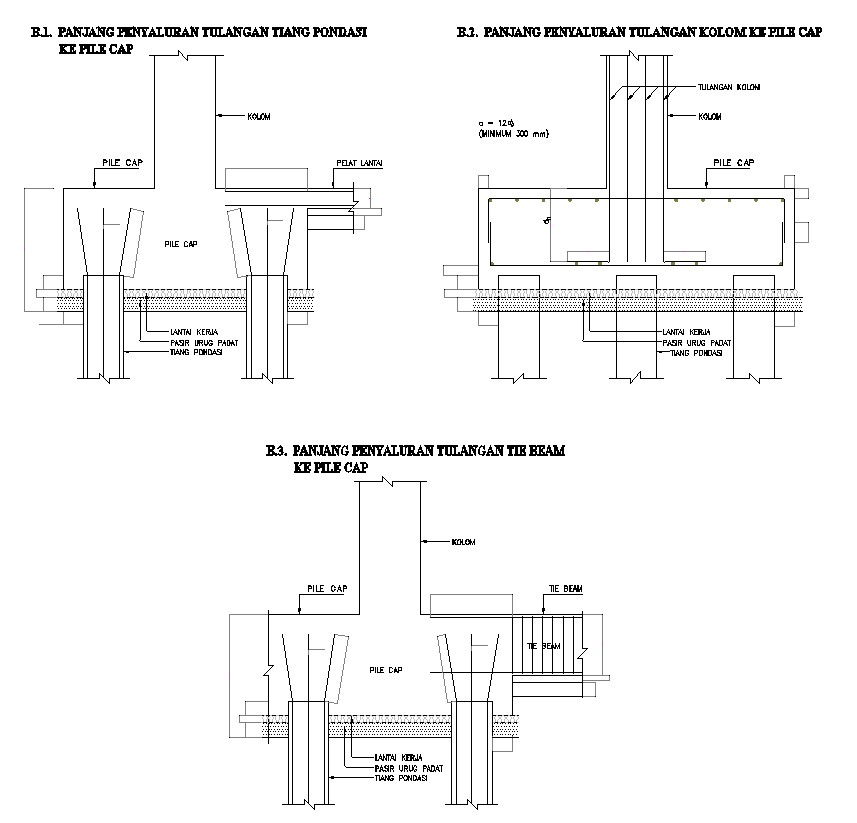

The pile cap detail section designs are given in AutoCAD 2D drawing. A pile cap is a thick concrete mat that is supported by concrete or timber piles driven into the soft or unstable ground to provide a stable foundation and this layout included different Lengths of columns, foundation, and tie beam reinforcement pile cap. For more knowledge and detailed information download the AutoCAD 2D dwg file.
