Two story residential building staircase reinforcement section views are given
Description

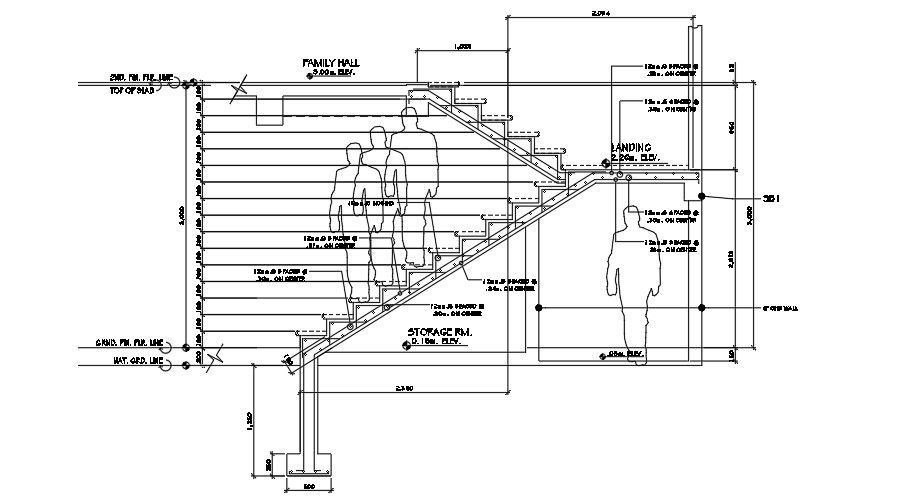

Two story residential building staircase reinforcement section views are given in this file. The staircase reinforcement details are given. 12mm rods are provided 2.26m landing area is provided. This drawing is given from the foundation detail to the staircase landing. Under the staircase, store room is provided.
