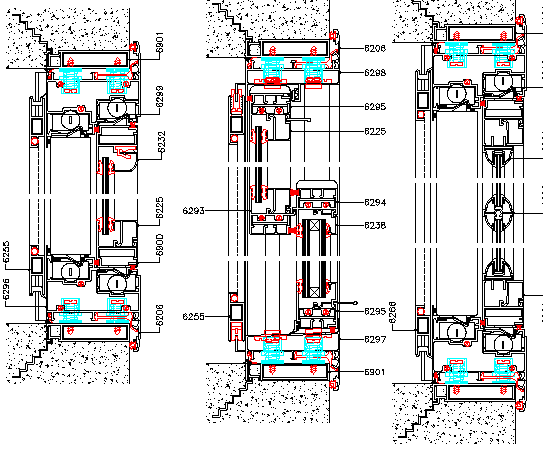

Guillotine window installation details dwg file


Description

Guillotine window installation details dwg file. Guillotine window installation details that includes a detailed view of Common curtain guide detail, (For curtain neighborhood: 6065), Central meeting detail 4 sheets, window and sliding door with 2 and 4 leaves, Detail of distributed glass, Vertical cut, Optional and much more of doors and window installation details.




File Type: DWG File ID: 33430

Uploaded by:


Vaishali
India
