Durable Aluminium Flush Door Layout with Modern Section Details

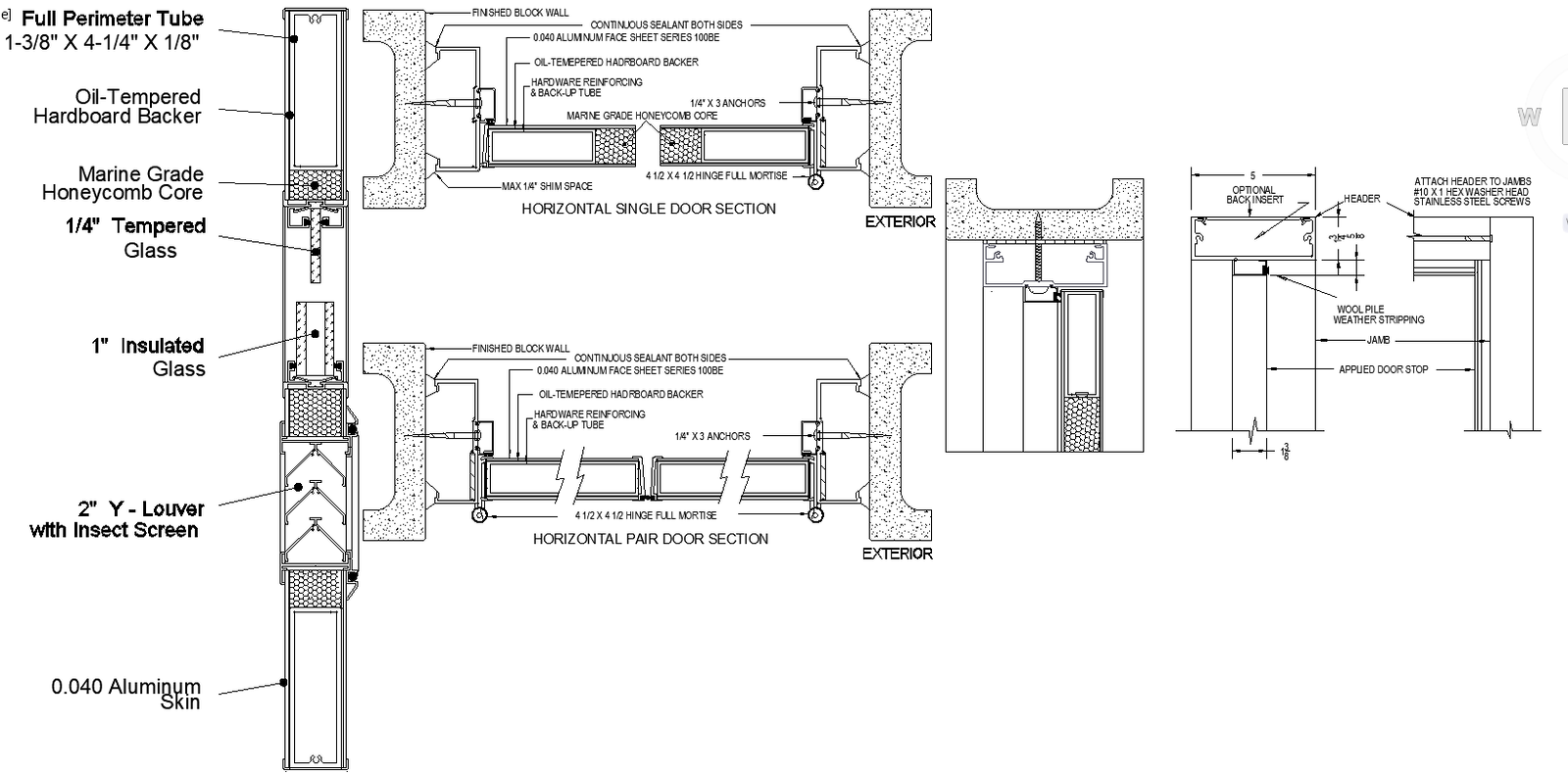

This aluminium flush door DWG file presents highly detailed construction drawings ideal for residential, commercial, and institutional applications. The plans include vertical section details showing the full perimeter tube measuring 1 3/8 x 4 1/4 x 1/8, oil-tempered hardboard backer, marine-grade honeycomb core, tempered glass integration, and insulated glass assembly. The drawing also illustrates 2-inch Y louver sections with insect screens, 0.040 aluminium skin placement, door frame interaction, and sealing points for long-term performance. Each detail is drafted with precision to assist architects and engineers in understanding the complete door construction sequence.

The file also features horizontal single door and pair door sections that highlight anchoring points, continuous sealant applications, aluminium face sheet dimensions, and hardware positioning. Additional details include jamb conditions, header mounting, optional backer blocks, weather stripping placement, and applied door stop sections. This DWG is suitable for architects, designers, manufacturers, and contractors needing an accurate reference for aluminium flush door fabrication and installation. It supports construction documentation, shop drawing preparation, material coordination, and modern door solution planning.
