House Plan DWG with Modern Layout Elevations and Site Location Map

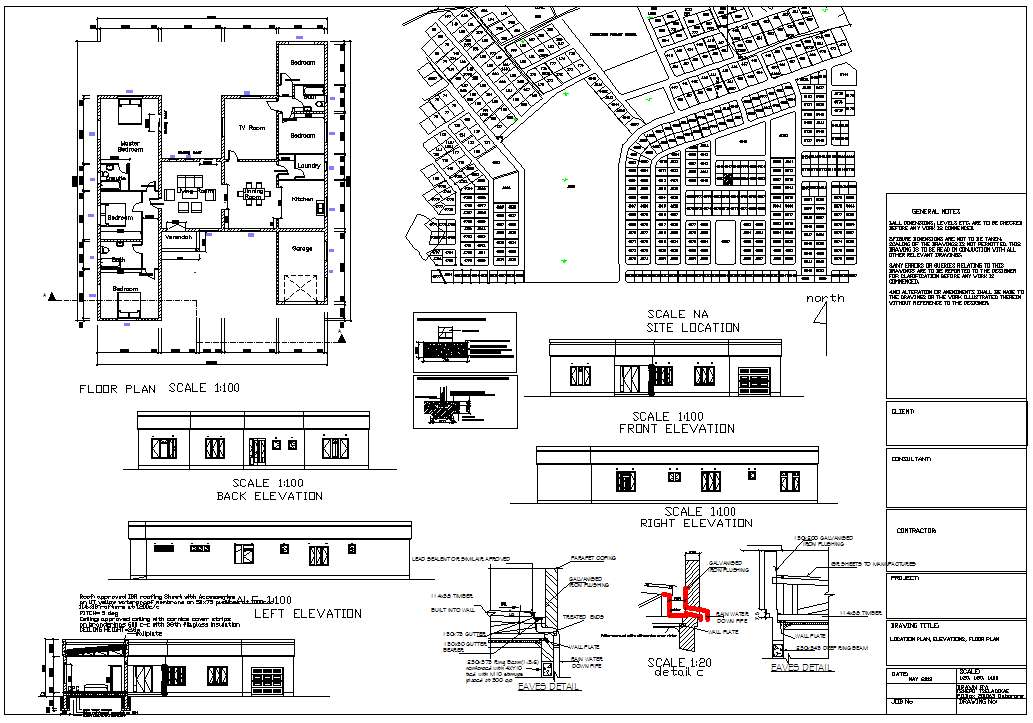

The House Plan DWG provides a complete architectural package with a fully dimensioned floor plan at 1:100 scale, detailed exterior elevations, and a clear site location map. The floor plan displays a spacious layout including a verandah, living room, dining area, kitchen, TV room, laundry, garage, and multiple bedrooms, each labelled and proportioned accurately. Internal circulation paths, window placements, door openings, and wall thicknesses are drafted clearly for construction reference. The site map, shown at “Scale NA,” illustrates the property’s placement within the surrounding neighbourhood, complete with roads, plot divisions, and orientation using a north arrow.

Additionally, the drawing set includes fully drafted front, back, left, and right elevations, showcasing façade elements, sill heights, roof lines, openings, and shading projections. Construction details such as eaves detail (Scale 1:20), gutter installation notes, and built-up wall sections provide practical guidance for engineering and site execution. General notes and specification blocks further enhance clarity for professional users. This DWG is ideal for architects, civil engineers, designers, and students seeking a precise and complete residential plan package for design study or project implementation.
