Twin Duplex House DWG with Detailed Floor Plans and Elevations

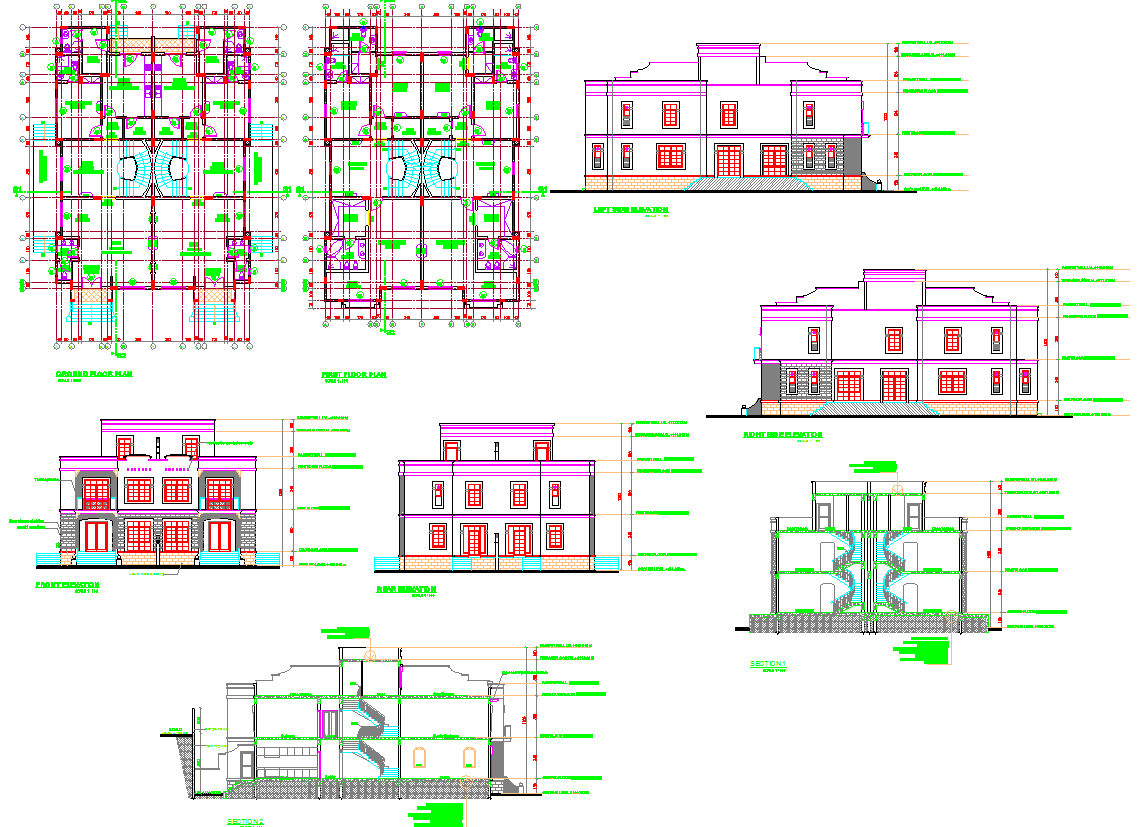

This Twin Duplex House Plan provides a highly detailed architectural layout showcasing identical residential units designed for functional family living. The drawing includes a complete ground floor plan and first floor plan, clearly indicating rooms, structural grids, wall placements, columns, and circulation patterns. Each duplex features symmetrical arrangements with living rooms, dining spaces, kitchens, bedrooms, staircases, and central lobby spaces organized to maximize efficiency. The plan also highlights support walls, ventilation placements, door and window openings, and precise measurements for construction accuracy.

The file further includes multiple elevation drawings, such as the front, rear, left, and right views, presenting façade detailing, openings, parapet lines, and exterior materials. The elevations display classic architectural character with framed windows, stepped roof levels, stone cladding segments, and ornamental boundary elements. Section drawings illustrate the internal layout vertically, including stair geometry, slab levels, ceiling heights, structural beams, and service spaces. This comprehensive DWG is ideal for architects, civil engineers, and builders seeking a reference for duplex housing, offering precise technical detailing and symmetrical layout concepts suitable for both residential development and investment properties.
