Contemporary Duplex House Plan with Smart Detailed Floor Layouts

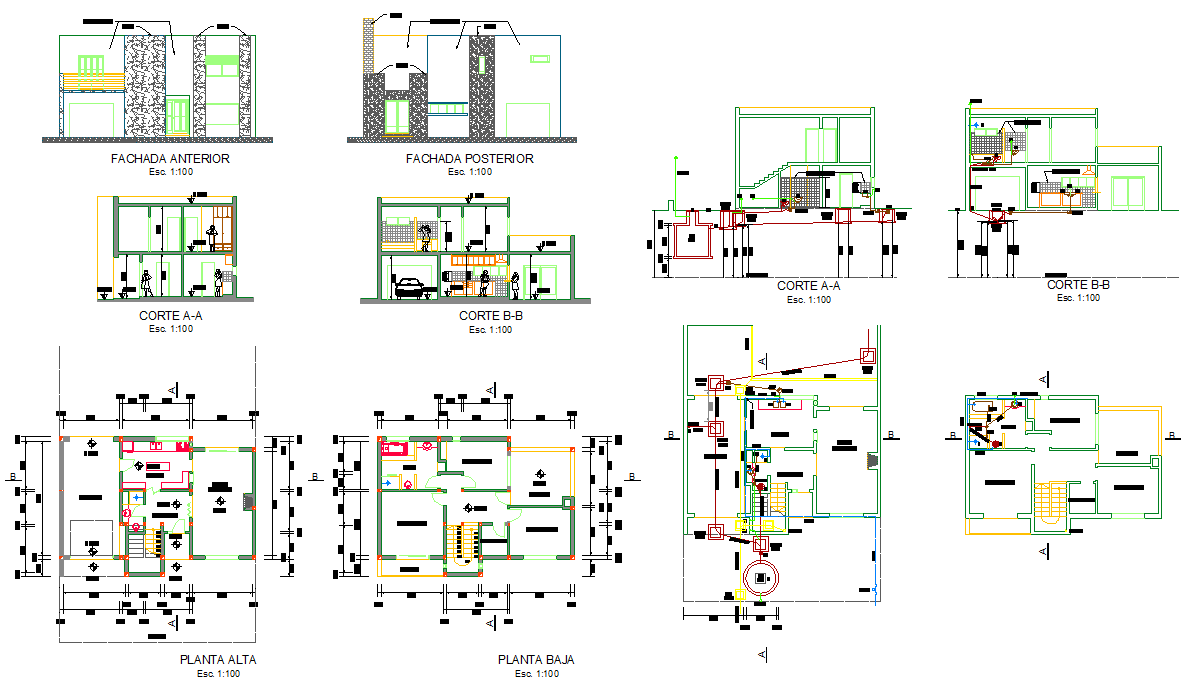

This AutoCAD DWG file presents a contemporary duplex housing design developed with complete architectural detailing for accurate residential construction. The plan includes a ground floor layout and an upper floor layout, each drawn at a scale of 1:100, showing bedroom arrangements, living areas, kitchen zones and service spaces with precise wall alignments. The drawings also feature section A-A and section B-B illustrating slab levels, staircase details and vertical circulation, along with structural supports positioned for load distribution. Both front and rear elevations are included, offering a clear view of façade treatments, window proportions, parapet height and overall building symmetry.

This file is ideal for architects, engineers and designers who require a ready-to-use blueprint for duplex developments. Users can analyze room dimensions, structural columns, plumbing placements and the spatial flow between private and shared areas. By subscribing on Cadbull, professionals gain access to this complete DWG package along with thousands of similar architectural resources supporting residential, commercial and interior design projects. This plan helps streamline project development, reduce drafting time and ensure precision during execution.
