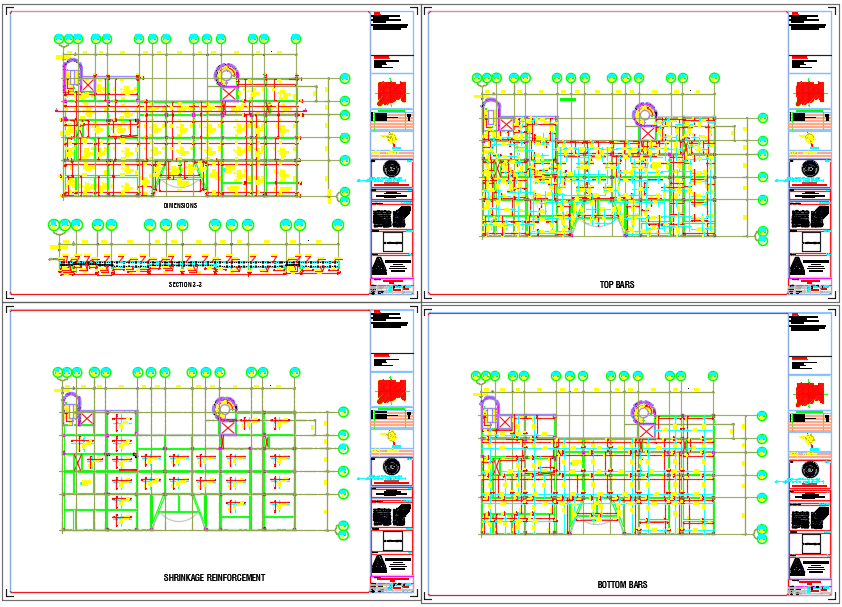

First Floor Slab Zone 2 AutoCAD DWG with Reinforcement and Bar Layout

This AutoCAD DWG file presents a complete first-floor slab zone 2 structural drawing, including detailed reinforcement layouts, top and bottom bar distribution, shrinkage reinforcement, and sectional views. The plan accurately represents the arrangement of beams, columns, and load-bearing walls that define the structural integrity of the slab. Each drawing sheet includes clearly marked dimensions, reinforcement schedules, and cross-sectional details for both top and bottom layers. The drawing also shows bar overlaps, spacing, and placement direction to help engineers and contractors achieve precision in real-world construction applications.

Perfect for civil engineers, architects, and structural designers, this DWG file demonstrates accurate load transfer mechanisms between beams and slabs. It also includes detailed sections that highlight the slab’s structural zones, shrinkage control reinforcement, and support conditions. This layout is an excellent resource for those involved in building design, structural modeling, and reinforcement detailing. The file is compatible with AutoCAD, Revit, and other CAD software, making it easy to adapt for residential, commercial, or institutional projects requiring strong slab and beam integration.
