Two Floor Residential House AutoCAD DWG with Elevation and Sections

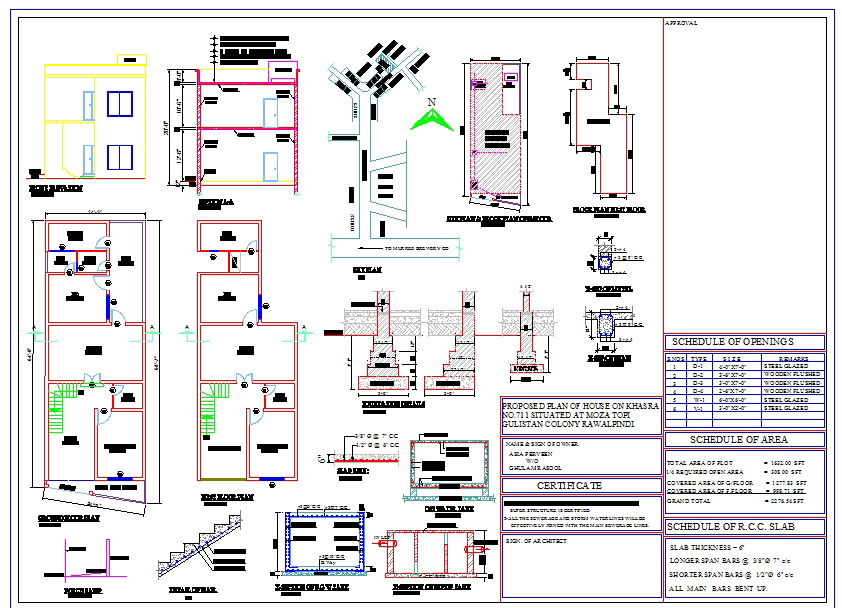

This home AutoCAD DWG file presents a comprehensive architectural drawing of a two-storey residential building. It includes detailed floor plans, elevation views, and sectional layouts, offering a clear understanding of both design and construction aspects. Each plan highlights precise measurements, wall dimensions, and reinforcement details, ensuring professional accuracy. The RCC slab schedule, opening schedule, and area chart are well-documented to support engineers and designers in structural planning and quantity estimation.

The drawing also covers staircase detailing, foundation sections, and a water tank layout, making it a valuable reference for technical design development. It features a north direction indicator for correct site orientation and structural labeling for easy comprehension. Suitable for architects, civil engineers, and students, this file helps visualize residential building concepts while maintaining real-world construction feasibility. Its clear drafting style and layout organization make it ideal for professional design presentation and practical implementation in the field.
