25x16.5 and 20x14 Residential House AutoCAD DWG with Floor Plans

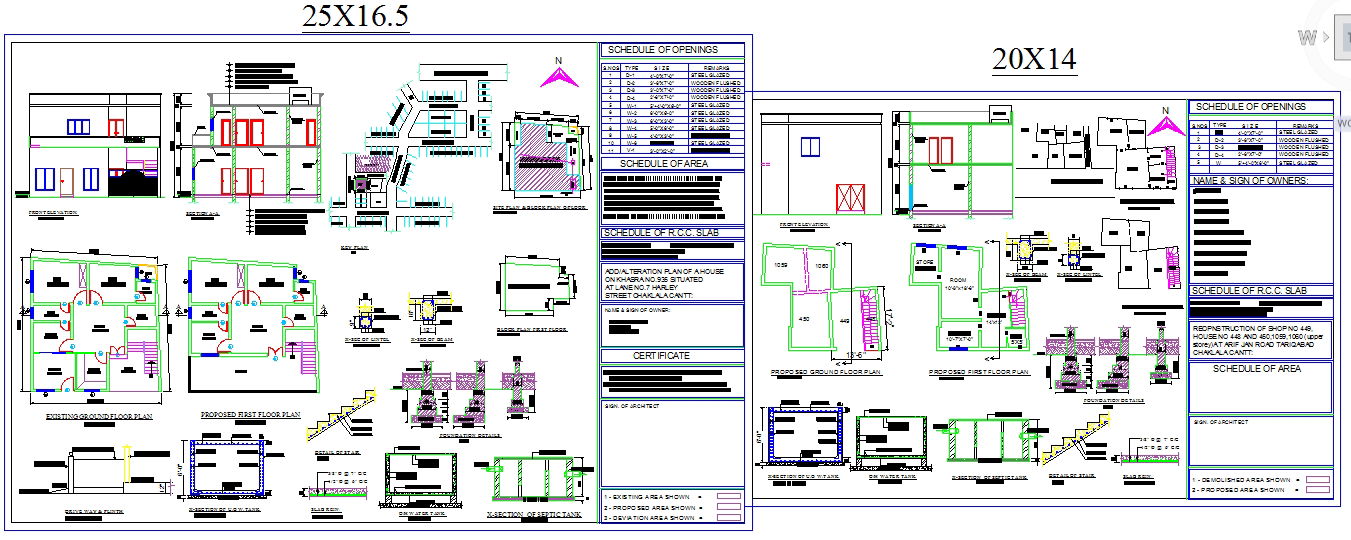

This CAD DWG drawing showcases two detailed residential house layouts with plot dimensions of 25x16.5 feet and 20x14 feet. Each design includes ground and first floor plans, elevation drawings, and sectional details, all drafted with precision. The plans display functional room arrangements, staircase positioning, and sanitary layouts for optimal residential space utilization. Each file features RCC slab schedules, foundation details, and structural notes to support accurate construction and professional documentation.

The drawing also includes wall sections, door and window schedules, and north direction symbols for precise alignment during execution. It is an ideal reference for architects, civil engineers, and design students focusing on small residential plots. The combination of compact design and clear presentation helps in understanding structural flow, space planning, and material allocation. This DWG file ensures a professional-level understanding of residential architecture through well-detailed plans, foundation drawings, and elevation representation, making it perfect for learning and real-world applications.
