Residential House AutoCAD DWG with Ground Floor Plan and Lawn Design

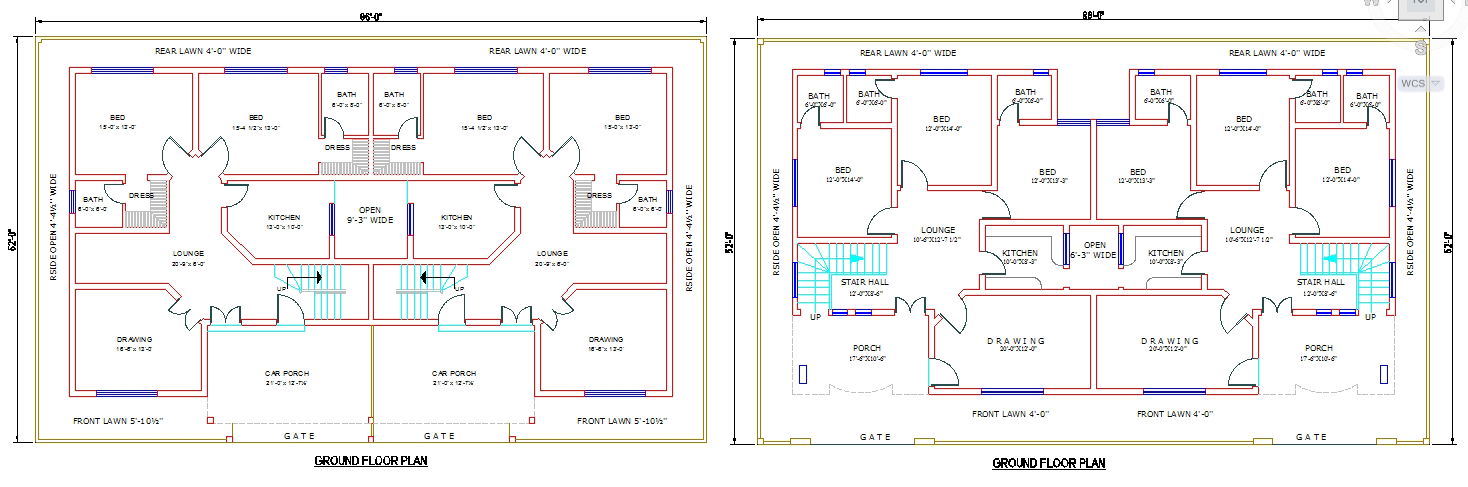

This residential house AutoCAD DWG file presents a detailed ground floor layout with complete room dimensions and structural design. The plan measures 60’x42’-9” and includes a well-defined car porch, drawing room, lounge, kitchen, bedroom, and attached bath arrangements. The layout also features front and rear lawns, each 4’-0” to 5’-10½” wide, designed for ventilation and landscape balance. Each room is marked with accurate measurements, such as bedrooms measuring 15’-4”x12’-6” and kitchens 10’-4”x10’-6”, offering clear insight into space allocation.

The drawing showcases an open central space of 9’-3” width, ensuring proper airflow and natural light. The file also highlights the stair location, gate alignment, and wall thickness, making it an ideal reference for residential construction planning. Suitable for architects, civil engineers, and interior designers, this DWG plan helps in understanding spatial zoning, functional design, and real-world architectural dimensions. It’s perfect for those seeking practical and technical knowledge for designing efficient, modern homes with green spaces and well-planned living areas.
