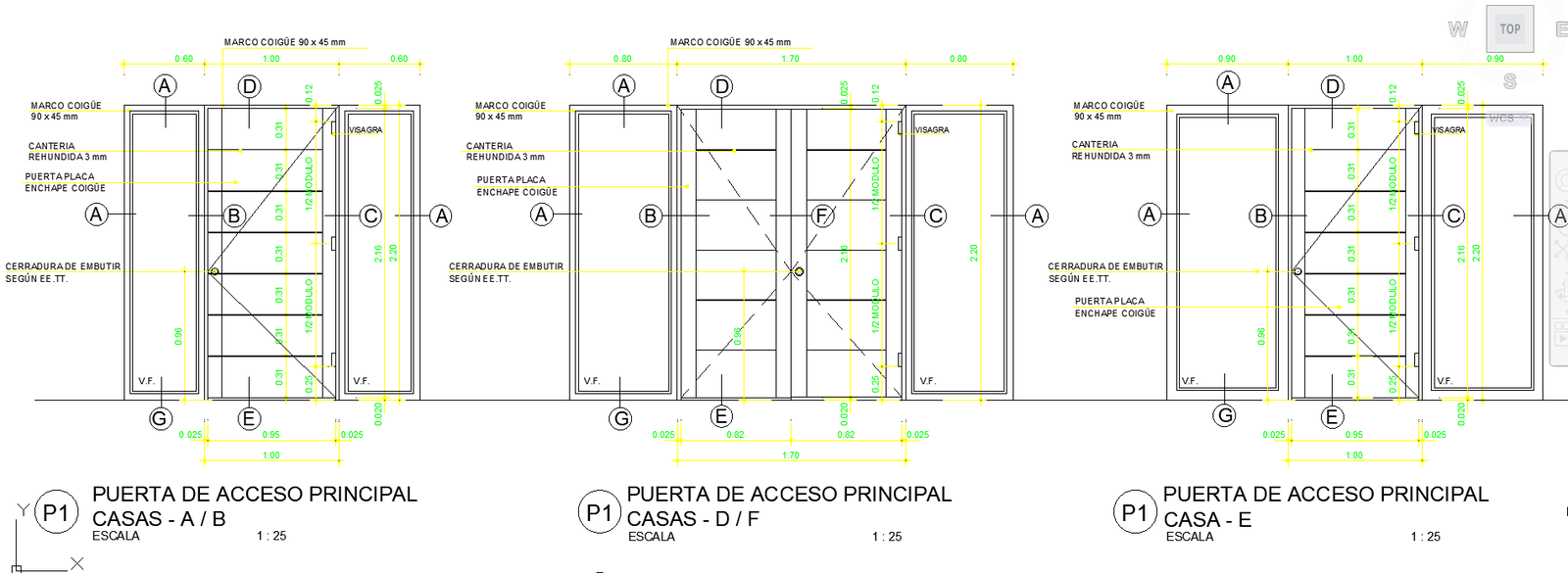

Modern Door Detail DWG with Measured Sections and Frame Design

This Door Detail DWG file provides a complete set of architectural door drawings with accurate measurements, section views, and frame construction details. The file includes multiple door types such as main access doors, interior swing doors, patio service doors, and storage doors. Each door layout features precise dimensioning of leaf size, frame thickness, sill and jamb detailing, hinge placement, lockset locations, and material specifications. The drawing also covers vertical cuts, threshold detailing, wood frame joinery, ceramic finishing junctions, and metal reinforcement points for enhanced structural stability.

Additionally, the DWG includes cross sections displaying installation methods for masonry walls, concrete frames, and interior partitions. Detailing of double wooden doors, patio service doors, and flush interior doors is provided with clear annotations for on-site execution. The file also shows connection points between the wall and the door frame, floor finishing transitions, and door alignment guidelines. This comprehensive door detail drawing is ideal for architects, interior designers, contractors, and civil engineers working on residential or commercial building projects requiring precise door detailing in AutoCAD format.
