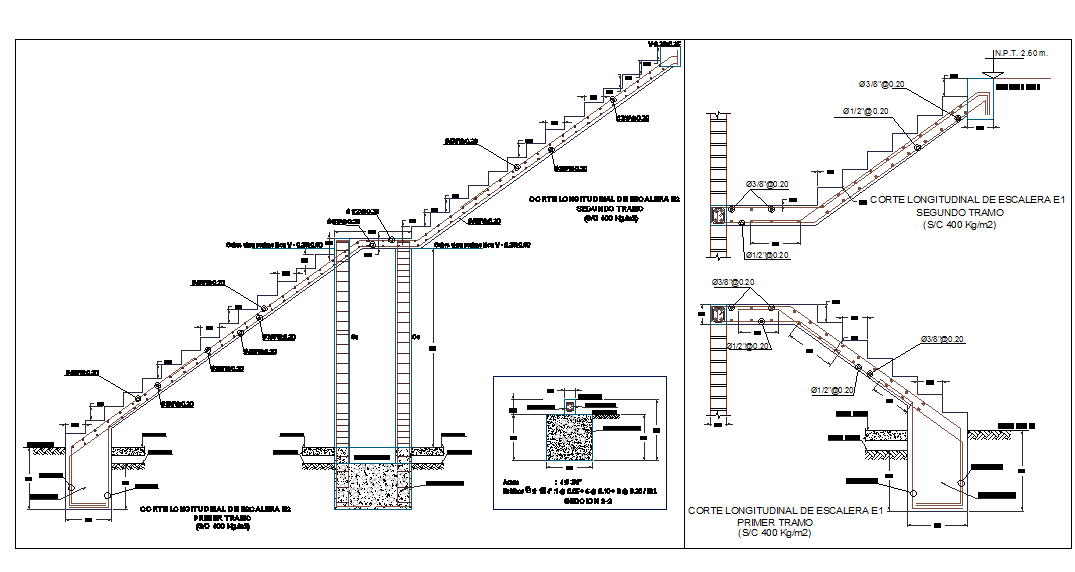

Stair Construction Detail in autocad file. longitudinal cut of stair e2, Sobre viga perimetrica V - 0.25x0.60, longitudinal cut of stair e2, stairs 2nd, 3rd, 4th similar floor etc.
